Machine Vision and Automation Streamline Logistics and Warehousing Operations

POSTED 05/04/2022

 | By: John Lewis, Contributing Editor

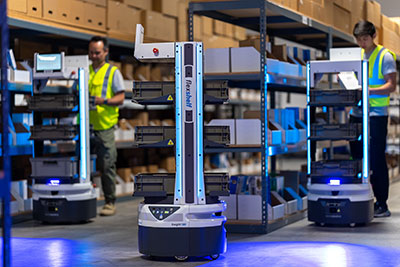

Zebra's FlexShelf Guide, which provides flexible configurations for bin sizing and spacing, expands the types of items that can be picked using AMRs.

Zebra's FlexShelf Guide, which provides flexible configurations for bin sizing and spacing, expands the types of items that can be picked using AMRs.5 Image courtesy of Zebra Technologies.

Worldwide, 131 billion parcels were shipped in 2020, according to the 2021 Pitney Bowes Parcel Shipping Index. By 2026, that number is expected to more than double, accelerated by a global pandemic and growing e-commerce industry. With the magnitude increase in retail purchases made online, the need to automate logistics, warehouse, and shipping processes has become a top priority.1

Package measurement, quality inspection, barcode reading, optical character recognition/optical character verification (OCR/OCV), and material handling optimization––which many companies currently carry out manually—are key stages of the shipping industry value chain that lend themselves to automation.

“Logistics, warehousing, and shipping organizations are struggling to operate faster. But speeding things up means accuracy and precision are imperative because there’s no time to deal with errors. And then there are the staffing issues,” explains Mark Wheeler, director of Supply Chain Solutions, Zebra Technologies. “When you put those three things together, what you get is a market that’s very open to trying new things by combining existing and new technologies in innovative ways.”

Much of this innovation centers around machine vision.

Vision-Guided Robotics

In a warehouse or distribution center, pallet loads typically mark the beginning and end of the warehousing process. Upon entry to a facility, pallet loads are either depalletized into individual cases or stored as full pallets. Depalletizing applications have transitioned from using mostly manual labor to relying on vision-guided robotics. Machine vision accelerates this process by localizing the next package to pick while the robot is placing the previous load on the conveyor.

“Most packages arrive at, and leave from, warehouses as pallet loads,” says Garrett Place, Business Development, Robotics Perception, ifm efector, inc. “Their journey through the modern warehouse is at the heart of most machine vision applications in logistics.”

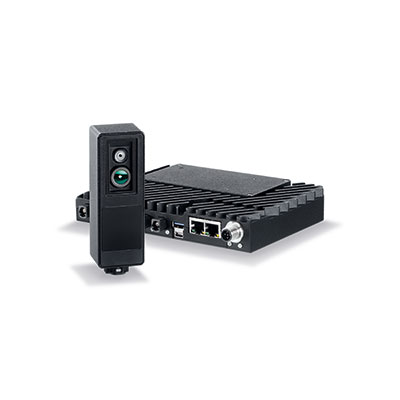

Used for robotic perception on may AMRs and AGVs, the ifm effector O3R platform camera heads camera heads are about the size of the Intel RealSense D Series cameras, but with full industrial specifications rated for shock, vibration, and dust.

Used for robotic perception on may AMRs and AGVs, the ifm effector O3R platform camera heads camera heads are about the size of the Intel RealSense D Series cameras, but with full industrial specifications rated for shock, vibration, and dust. Image courtesy of ifm effector.

Ben Carey, senior manager, Logistics Vision Products, Cognex Corporation, agrees: “Machine vision applications in logistics span four areas: gauging, inspection, guidance, and identification. Each of these areas is present from the inbound receiving processes through sorting all the way to outbound check points.”

To raise quality and drive production performance, Zebra’s suite of machine vision smart cameras and fixed industrial scanners provide product inspection and product movement tracking in manufacturing, warehouse, and logistics environments. A unified software platform dubbed Zebra Aurora helps businesses achieve improved simplicity, speed, productivity, and efficiency by enabling them to easily set up, deploy, and run both cameras and scanners.

Autonomous Mobile Robots

Ask a machine vision solution developer about the best way to bring repeatability to a use case, and they will likely say something about limiting the number of variables. After all, variables create edge cases. But most warehousing and logistics operations move packages that can be any color, size, shape, and material. This degree of variability makes technology selection — and solution creation — extremely difficult.

“The Amazon Pick challenge in years past is a perfect example of this,” Place points out, “and a primary reason most machine vision use cases in logistics are multicamera and multimodal. One camera and one technology are just not enough to manage the variability in these types of applications.”

John Leonard, Zivid product marketing manager, concurs. “The major applications are depalletization and palletization of boxes entering and leaving a facility. In between these in/out operations are mostly piece-picking operations and order picking to fulfill orders,” he explains. “These are accomplished using different methods, which vary from place to place.”

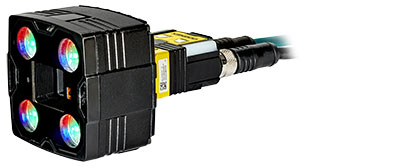

Cognex In-Sight 2800 with on-bard edge learning enables fast and accurate classification of everything from boxes to totes to polybags.

Cognex In-Sight 2800 with on-bard edge learning enables fast and accurate classification of everything from boxes to totes to polybags. Image courtesy of Cognex Corp.

These methods include autonomous mobile robots (AMRs) guided by onboard 3D vision. AMRs can, for instance, travel autonomously to walls of bins to find and select items. Robots can also pick items fed by a conveyor. Other mobile robots may carry items to vision stations so that the type and amount of goods can be inspected.

Zebra’s latest fulfillment solution consists of three AMRs: FlexShelf, FlexShelf Guide, and RollerTop Guide, as well as a new FetchCore fulfillment software package for order or batch picking. These new offerings help automate and digitize critical workflows in warehouses and distribution and fulfillment centers as order volumes increase, labor pools get more competitive, and customer expectations continue to rise.2

Automatic Guided Vehicles

Alternatively, for full pallet load storage, many warehouses deploy automatic guided vehicles (AGVs) to pick and store pallets for retrieval. During travel, AGVs rely on machine vision for pallet pose and obstacle detection. Machine vision code reading tracks pallet and caseloads throughout the process.4

When full pallets are ready to leave a facility, AGVs manage the movement while robotic arms convert caseloads to full pallets. These ready-to-ship pallets are then weighed and measured before entering the truck, making pallet dimensioning another strong use case for machine vision in logistics.

“The industry has undergone a shift, moving from assessing shipping fees strictly by weight to charging by dimensional weight––making accurate dimensional measurement more critical than ever,” says Daniel Howe, Regional Development Manager - Americas, LMI Technologies. “Smart 3D sensors are a key driver for greater automation for processes in packaging and logistics, including volume dimensioning, sizing, sorting, and surface defect detection.”

Many AMRs and AGVs rely on the ifm efector O3R platform for robotic perception. It consists of compact camera heads (VGA cameras and time-of-flight sensors) and a vision processing unit (VPU) with NVIDIA Jetson TX2 for the evaluation of the data. Up to six camera heads can be connected to the Linux-based device, including sensors from other companies.3

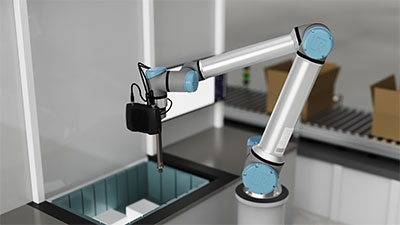

Zivid 3D cameras now support being ‘robot-mounted’ on the robot arm, which presents numerous possibilities that did not previously exist allowing for alternative viewpoints when challenging scenes are met. In this scenario the robot can simply move slightly in any direction to get a better view and consequently more detailed point clouds for detection analysis.

Zivid 3D cameras now support being ‘robot-mounted’ on the robot arm, which presents numerous possibilities that did not previously exist allowing for alternative viewpoints when challenging scenes are met. In this scenario the robot can simply move slightly in any direction to get a better view and consequently more detailed point clouds for detection analysis. Image courtesy of Zivid.

High Demand for Increased Speed, Throughput

While there are many challenges in logistics and warehousing applications, the demand for greater speed and increased throughput is constant. Challenges include items wrapped in transparent poly bags that present imaging challenges due to how they reflect light. Other piece-picking operations may require color as part of the item detection process, which may necessitate 3D vision that supports color information in the image.

Calibration is a big challenge with all 3D cameras as they are engineered to work in the range of micrometers and the knocks, temperature fluctuations, and vibrations common in industrial settings can easily affect the calibration and thus the accuracy of 3D cameras, according to Leonard.

“Some cameras, such as Zivid 3D cameras, are specifically designed and built to operate in industrial settings and are rated to IP65 and have automatic calibration features,” Leonard explains. “This means if the temperature changes by say 5 degrees due to a large roller door being opened and closed, a very common occurrence in a logistics warehouse, then the camera adjusts for this to remain perfectly calibrated.”

Box Volume Dimensioning and Void Filling

LMI has developed the ultrawide field of view (FOV) Gocator 2490 sensor, which is specifically designed to provide a fast and accurate parcel dimension measurement for shipping. Another application measures boxes to provide an accurate volumetric measurement for determining dimensional weight. Boxes may be traveling on a conveyor at speeds of 2 m/s. A single wide field of view Gocator 2490 smart sensor can scan and measure complete box dimensions (W x H x D) with a 1 m X 1 m scan area at a rate of 800 Hz and provide resolutions of 2.5 mm in all three dimensions (X, Y, Z), according to Howe.

“Competing camera-based systems typically offer just 3-to-5-millimeter resolution in the X, Y, and Z axes. However, each of our sensors vary in measurement range and resolution so it is essential to pick the correct one for your application,” Howe explains. “The Gocator 2490 has a high enough resolution to measure not only the dimensions of a variety of parcel sizes but even detect subtle defects in the packaging. This in-line inspection functionality allows a pass/fail decision to be triggered if a package with a defect is detected.”

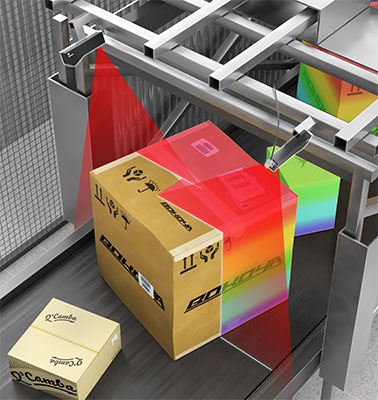

Two Gocator 2490 sensors can be used to scan the exposed sides of each box traveling on a conveyor, providing real-time defect detection to flag damaged packages.

Two Gocator 2490 sensors can be used to scan the exposed sides of each box traveling on a conveyor, providing real-time defect detection to flag damaged packages. Image courtesy of LMI Technologies.

The Gocator 2490 has also opened up opportunities to solve more advanced packaging applications like void filling, which involves scanning an open package with items in it and determining how much packaging material is required to fill the empty space. For this application, a dual camera configuration helps avoid occlusion within the box or tote.

Deep Learning on the Edge

Because challenges for machine vision in logistics arise when multiplying complexity in an application — for example, trying to detect different types of objects of varying dimensions in random orientations on a high-speed conveyor — traditional rules-based machine vision for detection/inspection would struggle in these situations.

However, easy-to-use machine learning (ML) and deep learning (DL) in embedded platforms is emerging to solve previously challenging applications. For example, Cognex recently launched In-Sight 2800 with edge learning that is easy to setup with no programming required. The In-Sight 2800 gives fast and accurate classification of everything from boxes to totes to poly bags and runs entirely onboard the smart camera, according to Carey.

“Technologies such as edge learning on the In-Sight 2800 increase package detection rates, leading to less manual rework and enabling better order accuracy through more advanced material handling automation,” says Carey. “Our customers benefit from increased processing speed with less manual interaction, allowing these companies to manage fluctuating demand without changing headcount, which continues to be a challenge in today’s labor-constrained environment.”

Democratizing Machine Vision

Most of the technologies being deployed in the modern warehouse, including 2D and 3D cameras and increased compute power, for example, are iterations of previously known approaches. What is somewhat new is the utilization of all these technologies in multicamera, multimodal strategies with large processing capability, in combination with ML, to manage the application.

“We used to see single vendor solutions in the warehouse,” Place explains. “We now see a combination of vendors and technologies, each with their own strengths, deployed in unison to solve the challenge. This approach will continue to unlock use cases previously untouched by machine vision. Think of it as a democratizing of machine vision in warehousing and logistics.”

It’s difficult to put a finger on a single technology advance that is unlocking new use cases for machine vision in warehousing and logistics. Of course, cameras are providing better, more repeatable data and compute is faster, but nothing has changed the game. The biggest advance is in how easy the components are to use in a multi-technology approach to solving problems in the warehouse.

“Logistics is moving toward robotics as a primary method to manage the massive growth in the industry,” concludes Place.  “Robotics is an integration problem. Machine vision, with all of its complexities, is moving from a single camera focus to one that reduces friction on the integration of all of the components required for the modern warehouse. This approach will take us to the next step in this journey.”

References:

  1. LMI Technologies - LMI Technologies: 3D Smart Sensors for ..., https://www.manufacturingtechnologyinsights.com/lmi-technologies.
  2. Zebra Technologies Corporation - Zebra Technologies ..., https://investors.zebra.com/news-and-events/news/news-details/2021/Zebra-Technologies-Expands-Fetch-Robotics-Portfolio-with-Solution-to-Optimize-Fulfillment-Workflows/default.aspx.
  3. ifm efector O3R Democratizes Robotic Perception - Robotics ..., https://www.roboticsbusinessreview.com/rbr50-company-2022/ifm-efector-o3r-democratizes-robotic-perception-2/.
  4. Automated high-speed pallet storage and data capture. (n.d.). Www.Cognex.Com. Retrieved April 20, 2022, from https://www.cognex.com/applications/customer-stories/logistics/automated-high-speed-pallet-storage-and-data-capture
  5. Zebra adds to fulfillment stripes with Fetch Robotics AMRs ..., https://www.freightwaves.com/news/zebra-adds-to-fulfillment-stripes-with-fetch-robotics-amrs-workflows.
