Medical Aerial Syringe Assembly

This automated system was developed to assemble a Medical Aerial Syringe platform supporting more than 120 product variants across seven core components. The project required flexibility to manage high product variation and an unfrozen design while maintaining production efficiency and process control.

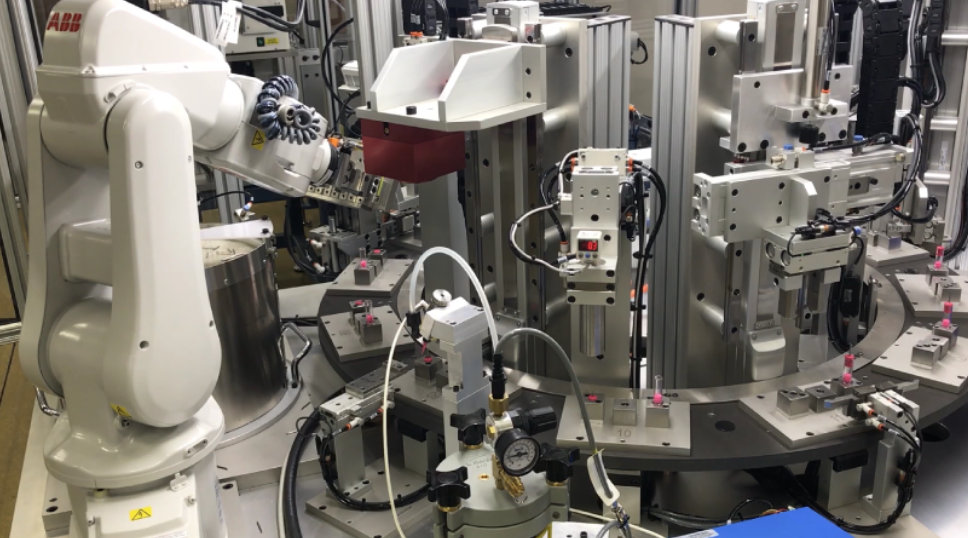

The solution utilizes a 12-station dial indexing system integrated with a vision-guided assembly robot to ensure accurate part placement and alignment across variants. Six precision feeders supply components to the dial, enabling reliable part presentation and consistent flow through the system.

Certified Motion Control Professional Program

Strengthen Your Skills and Enhance Your Career

Become a Certified Motion Control Professional (CMCP) and join the elite group of system integrators, machine builders, manufacturers, end-users and others recognized in the industry for their professional knowledge and expertise.

Become Certified

Critical joining processes include pressing with active monitoring, heat staking, and controlled glue dispense. All key operations are AB controlled to ensure repeatability and traceability. Despite the complexity and variation, the system achieves an 11.2-second cycle time, delivering high-throughput performance while maintaining the precision required for medical device manufacturing.
