Autonomous Earth Moving Robots

POSTED 06/08/2023

Autonomous Earthmoving Robots

Industry: Industrial Automation, Construction

Location: San Francisco, CA (USA)


A new San Francisco-based startup develops AI guidance systems to transform heavy equipment into fully autonomous robots. Their guidance systems are deployed today across the $1 trillion earthmoving industry. This guidance system combines sensors such as GPS, cameras, and Lidar with advanced software. Their robots are being used to build critical infrastructures such as wind farms, gas pipelines, and new housing developments. These robots make construction safer, faster, and more affordable. Antaira was able to provide an industrial 10G PoE+ solution to bolster their guidance systems and associated devices.


This unique application had a few obstacles to overcome. Autonomous earthmovers have shock, vibration, and temperature issues to consider as well as 24VDC operating power requirements to meet. The customer required a switch with 8 Gig PoE+ ports and 2 10G fiber uplinks. This switch must be able to support multiple, simultaneously streaming, GigE Vision cameras and various ancillary devices reliably with no latency issues.

  • Robust, DIN mount switch that can withstand shock and vibration
  • 8* Gig 30w PoE+ ports
  • 2* 10G fiber ports
  • Must operate at 24VDC system power
  • Must withstand high temperatures for extended periods of time

Antaira's LNP-1002G-10G-SFP-24 is perfectly suited for these robots. This unit allows 8 Gig PoE+ ports to support all ancillary and streaming vision devices for their guidance system. Two 10G fiber uplinks and 56Gbps Back-Plane ensure no latency issues. 24VDC power input allows this unit to integrate seamlessly into their existing 24V system. The rugged construction and wide temperature range are tailor-made for this demanding application. Antaira's short lead times ensured the customer received the product as needed, saving their team valuable time during development.

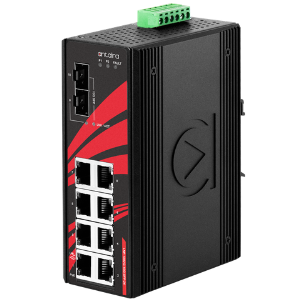

Industrial Gigabit PoE+ Unmanaged Ethernet Switch
  • 8*10/100/1000Tx (PSE: 30W/Port)
  • 2*10G SFP+ Slots
  • 56Gbps Back-Plane (Switching Fabric)
  • 12~55VDC Redundant Power Inputs
  • -40° to 65°C Operating Temperature
  • Regulatory Approvals:
    - UL 61010-1, 61010-2-201
    - Shock: IEC60068-2-27
    -Vibration: IEC60068-2-6
