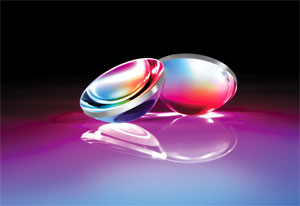

TECHSPEC® Laser-Line Coated Precision Aspheric Lenses Designed for High Power Nd: YAG lasers

Lenses offer high damage thresholds
Barrington, N.J. - Edmund Optics (EO), the premier provider of optical components, introduces its new TECHSPEC® Laser-Line Coated Precision Aspheric Lenses. These lenses, offering high damage thresholds, are designed to maximize performance in high power Nd: YAG laser applications.

Designs minimize spherical aberration
RoHS compliant TECHSPEC Laser-Line Coated Precision Lenses feature precision aspheric designs that minimize spherical aberration, which decreases laser spot size and maintains high power per area. The lenses have high performance Laser V-coatings with absolute reflectance of less than 0.25% at their design wavelength. The coatings have been optimized for the most popular Nd: YAG wavelengths and offer high damage thresholds. A UV fused silica substrate is highly resistant to thermal expansion.

Twelve different V-coated lenses available
TECHSPEC Laser-Line Coated Precision Lenses are available in twelve different models. They are offered in a 15 mm diameter size with numerical apertures (NA) of 0.60 with design wavelengths of 355 nm, 532 nm and 1064 nm and a 0.50 NA with design wavelengths of 355 nm, 532 nm and 1064 nm. A 25 mm diameter size has a 0.42 NA at design wavelengths of 355 nm, 532 nm and 1064 nm, as well as 0.50 NA models at 355 nm, 532 nm and 1064 nm. TECHSPEC Laser-Line Coated Precision Lenses are in-stock and available for immediate delivery for fast turnaround and excellent value. Custom diameters and coatings at your required wavelength are also offered to create a precision aspheric lens that meets your needs.

Certified System Integrator Program

Set Yourself at the Forefront of the Global Vision Market

Vision system integrators certified by A3 are acknowledged globally throughout the industry as an elite group of accomplished, highly skilled and trusted professionals. You’ll be able to leverage your certification to enhance your competitiveness and expand your opportunities.

GET CERTIFIED

Stop by Booth #1514 to see on display during CLEO, May 12-14, San Jose, California.

About EO
Edmund Optics® (EO) is a leading producer of optics, imaging, and photonics technology for R&D, electronics, semiconductor, pharmaceutical, biomedical, and military markets around the globe. EO is the world's largest supplier of off-the-shelf optical components.

Company Contact
Kirsten Bjork-Jones - Director Global Marketing Communications
Tel: 1-800-363-1992
