Opto's Tilting Table was worth a i-novo-Tech nomination by DirectIndustry

POSTED 03/14/2018

Last fall Opto's Tilting Table was worth a i-novo Tech nomination by DirectIndustry platform.

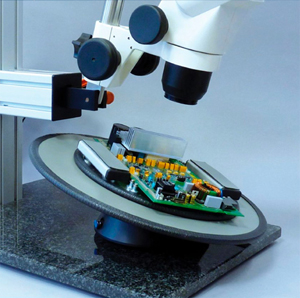

Like all other rotation tables delivered by Opto the 450mm Tilt Stage is mainly used for control and inspection work on printed circuit board assemblies and also for welding and soldering tasks. This unit can be coupled to the Stereo or TV Microscope to form an ergonomic repair station. In addition, this framework offers a 360° rotation to the sample and can be tilt at maximum of 30°.

Tilting Table 450mm   i-NOVO Award 2017 nominee

Technical data:
Article number: 043-631003

Diameter: 450mm
Plate: steel
Component fixation: magnetic fixing
Fixing the tilting position: Vacuum adjustment with foot switch
Weight: ca. 7.8kg (including support plates)
Accessories: 2 Magnetic hand support plates, 8 Conductor board holding magnets

There is also a smaller tilting table of the same design available with a diameter of 300mm and a granite tilting table with a non-slip rubber ESD surface.

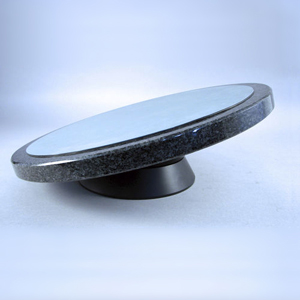

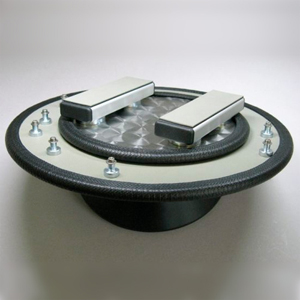

Tilting Table 400mm granite with non-slip rubber surface   Tilting table 300mm

An alternative to the Tilting Table are our Oblique Viewing Modules for Stereo Microscopes.
