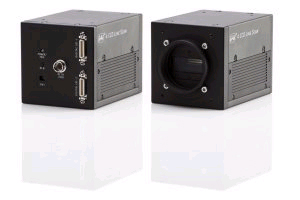

LT-200CL Industrial Grade Color Line Scan Camera

JAI announces the release of the LT-200CL, a new industrial grade color line scan camera based on JAI’s advanced prism technology. Featuring a light beam splitter prism and three 2048-pixel, custom-designed CMOS sensors, the LT-200CL captures the red, green and blue spectral bands in 3 separate channels simultaneously through the same optical path and with co-site sampling accuracy.

The high color accuracy provided with the LT-200CL makes it ideal for demanding vision applications such as fruit and vegetable sorting, 2D/3D print inspection, wood inspection and surface inspection of flat panels and paint coatings, for example.

Further, JAI’s prism-block technology enables users to avoid the complex alignment and encoding issues related to off-axis viewing, variations in conveyor speeds, surface undulations, or objects that roll or move as they pass through the camera’s field of view.

The LT-200CL is capable of running at scan rates up to 30383 lines/second via an 80 MHz data clock and follows the recent launch of JAI’s 3-CMOS color line scan camera, the  LT-400CL, which features 3 x 4096 pixels and a 16180 lines/second scan rate. With the addition of the LT-200CL to the product program, JAI now offers multiple resolutions and speeds in this new family of color line scan cameras.

For flexible setting of scan rates and resolution the LT-200CL features various pixel readout modes like full readout, binning, sub-sampling and windowing readout. Using sub-sampling or windowing readout modes the camera is capable of running at scan rates up to 60766 lines/second at 1024 pixel resolution.

A number of built-in pre-processing functions are available including flat-field compensation, flat-shading compensation and color shading compensation. Gain correction as well as the electronic shutter can be set individually for the red, blue and green channels providing even further flexibility in image optimization.

Market Intelligence News & Insights:

How Will Apple’s $500 Billion Investment for US Manufacturing, Education, and AI Play Out?

On February 24^th, Apple announced a “commitment… to spend and invest more than $500 billion in the U.S. over the next four years”, with plans for new manufacturing plants, enhanced support for manufacturing partners via their Advanced Manufacturing Fund, and a myriad of other initiatives. As part of this plan, Apple projects 20,000 new hires, with roles focused on R&D, silicon engineering, software development, and AI/ML engineering.

Read More

Other features include one-push automatic white balance, a noise reduction function and a test pattern generator that can be applied as a set-up and installation aid to check the performance of the camera.

The camera is equipped with a Camera Link interface providing 24-bit (3 x 8-bit) or 30-bit (3x10-bit) outputs.

To maximize the camera’s ability to withstand the rigors of industrial environments, all LT-200CL cameras undergo extensive shock (50G) and vibration testing (3G) to secure reliable operation over very long operating periods. A ridged housing design provides maximum surface area for heat dissipation resulting in excellent temperature management and optimal image quality.

About the JAI Group
JAI is a manufacturer of high quality, industrial-grade cameras for the machine vision, transportation, aerospace, homeland security, medical and scientific markets.

JAI’s broad product line features high performance progressive scan CCD cameras with spatial resolutions from VGA to 16 megapixels; traditional interlaced video cameras; intensified cameras with sensitivity to light levels as low as .00001 lux, and a range of innovative 2CCD and 3CCD prism-block cameras including both area scan and line scan models.

Physical interfaces include the Camera Link® and GigE Vision® high performance digital standards, as well as both TV-standard and analog progressive scan output.

JAI cameras help improve customer businesses in a variety of ways, whether by improving quality and accuracy, lowering costs, increasing yields, or simply enabling better service. In addition to cameras, JAI’s traffic solutions group is one of the world’s leading manufacturers of specialized traffic systems. Solutions are based on JAI-developed hardware and software, which is often integrated with third-party products.
