Experience FactorySmart™ Vision. 2D/3D + AI LIVE at Automate 2026

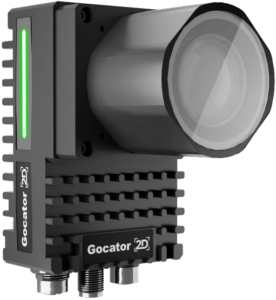

Gocator® 2D Smart Cameras

Smart Industrial 2D Vision with Deep Edge AI

Gocator® 2D cameras combine high-speed imaging and deep edge AI (deep learning-powered intelligence executed on-device), in one compact, IP67-rated package - built on the      [A1] [A2] NVIDIA® Jetson Orin™ NX and powered by onboard GoPxL IIoT vision software. These cameras capture, inspect, and output results at up to 84 fps - no PC, no cloud, no middleware - just powerful inspection performance, straight from the camera.

Deploy defect detection, measurement, and traceability in hours, not weeks  - with no coding, and no recurring fees. Scale effortlessly from a single station to an entire factory network. Gocator 2D makes vision automation fast, simple, and built to scale.

Gocator® 2600 Series

4K+ Resolution Smart 3D Laser Line Profilers

The remastered Gocator® 2600 Series sets a new standard in high-resolution 3D measurement. Equipped with a 9-megapixel imager and capable of capturing up to 4192 points per profile, these sensors deliver 4K+ resolution, faster scan speeds, and improved data quality. With X resolutions as fine as 0.0025 mm, the Gocator® 2600 Series is designed for precision inspection in high-demand applications, including automotive and electronics manufacturing.

• X resolutions down to 0.0025 mm
• Fields of view up to 2 meters
• RED and BLUE laser options available
• On-sensor measurement tools and I/O connectivity
• Multi-sensor alignment and networking support

Gocator® 3500 Series

High-Resolution Smart 3D Snapshot Sensors

LMI Technologies will also feature the Gocator® 3500 Series, a high-resolution structured light 3D snapshot sensor built for fast, accurate inline inspection of small to mid-sized parts. The sensor’s stereo camera design minimizes occlusions, providing clear, reliable measurements. Ideal for robotic and stationary inspection applications, the Gocator® 3500 Series offers scan rates up to 6 Hz and a wide field of view of up to 282 x 175 mm.

• 5 MP stereo camera design for reduced occlusions
• Fast cycle times for inline inspection
• Compact, industrial-ready design for easy integration

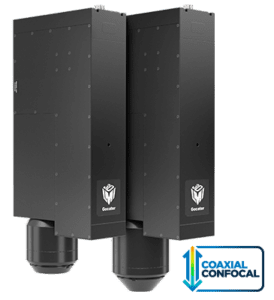

Gocator® 4000 Series

Smart 3D Coaxial Line Confocal Sensors

The Gocator® 4000 Series offers high-speed, shadow-free 3D measurement using coaxial line confocal technology. New models - Gocator® 4011 and 4021 -feature enhanced optics for superior performance on challenging surfaces like semiconductor BGAs. This series delivers precise measurement data for demanding applications in industries such as medical, consumer electronics, semiconductor, and EV battery manufacturing.

• Up to 1920 points per profile for high-accuracy measurements
• X resolutions as fine as 1.9 microns
• Fields of view up to 5 mm
• Max slope angle of ±85°
• Scan rates up to 36 kHz with acceleration

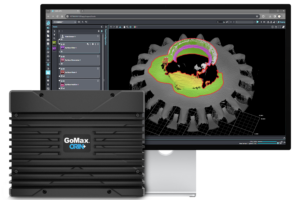

GoPxL + Anomaly Detector

AI-Driven 3D Inspection with GoPxL Pro Tools

LMI Technologies will present its GoPxL Pro Tools suite, featuring AI-powered Anomaly Detector, Classifier, and Object Detector solutions designed for industries like automotive, food, tire, and building materials. These do-it-yourself tools combine traditional inspection with AI-driven capabilities to identify defects, categorize parts, and locate features in real-time using a GoMax, PC or Gocator 2D Smart Camera. The solution eliminates cloud infrastructure or external GPUs, offering a self-contained, highly efficient inspection tool.

• Onboard AI training and inference for Anomaly, Classifier, and Object Detector tools
• Seamless integration with GoPxL software framework
• Optimized for complex, variable part surfaces and feature localization
