Color Insensitive Laser Distance Sensor Detects Targets up to 4 Meters Away

Baumer, Ltd.

Compact Sensor Fits Easily Into Automated Industrial Equipment for OE or Retrofit Applications

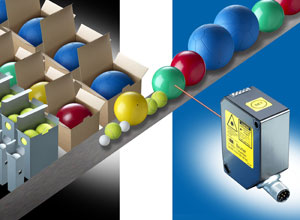

Baumer has introduced the OADM 250, an optical laser distance sensor specifically designed to accurately detect target objects, regardless of surface properties or color, at distances from 0.2 meters to 4 meters away.  Based on time of flight technology, the compact OADM 250 offers response times of less than 10 ms, resolutions of 1.2 mm, and repeat accuracy of +/- 5 mm, which delivers precise data even on moving targets.

The Baumer OADM 250 is designed to supplement traditional laser distance sensors with measuring ranges of less than 1 meter.  Sized at just 25 x 66 x 51 mm, the sensor fits easily into almost any application.  A robust aluminum housing, washable glass front optics, and IP67 certification provide durability and reliability in harsh end use environments.

The measuring range of the OADM 250 is easily adjusted using a teach-in button or separate wire.  To ensure sensor reliability, an integrated alarm will sound if the target is outside the taught-in range.

The OADM 250 sensor can be used in a variety of automated long-range part placement/detection, counting, and control monitoring applications such as conveying, palletizing, handling/logistics, packaging, assembly, and lumber processing.  These sensors are also used in heavy-duty vehicles, solar panels, wind turbines, print/graphics machinery and metalworking equipment.

For more information on the Baumer’s new OADM 250 Distance Sensor, contact Baumer at (800) 937-9336.

The Baumer Group is a leading international manufacturer of sensors and system solutions for factory and process automation. In 2010 the innovative family-owned company employs about 2,000 people worldwide in 35 locations and 18 countries. The long lasting success is built on high customer focus as well as the innovative and diversified product range of the five product segments Sensor Solutions, Motion Control, Vision Technologies, Process Instrumentation, and Gluing Systems.
