Beam Twisters™ Provide 90° Rotation of Laser Bar Beams

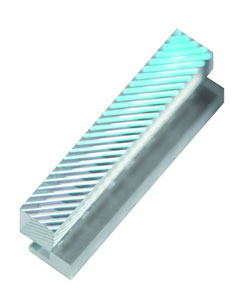

Barrington, N.J. - Edmund Optics® (EO), the premier provider of optical components, introduces new Beam Twisters™ . These beam shaping lenses are used to rotate the beams emitted by the individual laser bars by 90° using a preassembled proprietary molded glass twister array combined with a fast axis collimator.
Assembly includes fast axis collimator and rotation array
Beam Twisters™ are comprised of an assembly of a fast axis collimator lens of S-TiH53 and a beam rotation lens array. Light emitted initially from a laser bar appears to be in the shape of a line. Once it has passed through a Beam Twister™, the laser bar's light transmission is transformed into a square-shaped appearance by its 90° rotation. This square configuration is beneficial to a laser line because it allows the beam to be focused into a spot, which may be used with fiber optics or a variety of other beam delivery systems.
ROI Calculator
Discover the potential cost savings of robotic automation over a 20-year system life
This calculator compares your current manual labor costs against the total cost of owning and operating a robotic system over its 20-year lifespan.
Greater than 97% transmission
Providing greater than 97% transmission, RoHS compliant Beam Twisters™ feature NIR coatings with an average reflectance of less than 0.5% at 800-1000nm. A 24 emitter model with 400μm pitch and a 19 emitter version with 500μm pitch are both available. Beam Twisters™ are ideal for pairing with a slow axis collimator for complete laser beam collimation. Beam Twisters™ are in-stock and available for immediate delivery for fast turnaround and excellent value.
About EO
Edmund Optics® (EO) is a leading producer of optics, imaging, and photonics technology for R&D, electronics, semiconductor, pharmaceutical, biomedical, and military markets around the globe. EO is the world's largest supplier of off-the-shelf optical components.
Company Contact
Kirsten Bjork-Jones - Director Global Marketing Communications
Tel: 1-800-363-1992
PR Contact
James Liolin - Media Relations/Content Marketing
Tel: 1-914-670-0138
