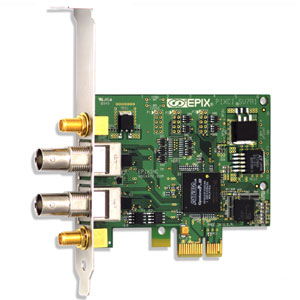

PIXCI SV7 Dual Composite Video Frame Grabber
The PIXCI® SV7 frame grabber has two BNC jacks for composite video cameras (NTSC, RS-170, PAL or CCIR). The two inputs are independent, allowing capture of different resolution or format. Digitized video is transferred to the PCI Express bus at video rate. Images may be transferred, at full or reduced frame rates, to computer memory for processing and/or analysis by the host computer’s processor(s), or to other targets on the PCI Express bus.Programmable gain, hue, brightness, saturation, and contrast adjustments can condition the video signal. SMA connectors provide TTL Trigger In and Strobe Out. Up to 4 PIXCI® SV7 boards, in one computer, can capture at the same time from up to 8 video sources.
The XCAP-Lite imaging program, provided at no charge with the PIXCI® SV7, provides independent Capture & Adjust Dialogs for each of the two inputs. The PIXCI® SV7 frame grabber, with XCAP-Lite software, is $395.00.
Epix, Inc.
Epix manufactures cost effective cameras, frame grabbers, software, computer imaging systems, cables and power supplies for OEM machine vision applications using line scan, area scan, high-speed and high-resolution cameras. Imaging systems with interactive software imaging tools can be used out of the box for many machine vision applications. Programmer libraries provide board control functions for OEM-written application programs for 32 and 64 bit Windows and Linux, or DOS operating systems. EPIX creates customized imaging products and systems to OEM specifications. EPIX has been providing imaging components since 1984.
