Camera System Ensures Precise Glass-to-Display Hybrid Bonding

Overview

In high-volume touchscreen display manufacturing, hybrid bonding has emerged as the preferred joining method. By combining the benefits of solid and liquid bonding, the process enables permanent, durable connections between glass and display components while meeting strict optical and mechanical requirements. However, the success of hybrid bonding depends heavily on the precise alignment of each component prior to joining. Even minimal positional or rotational deviations can result in bonding defects or reduced yield.

Application and Solution

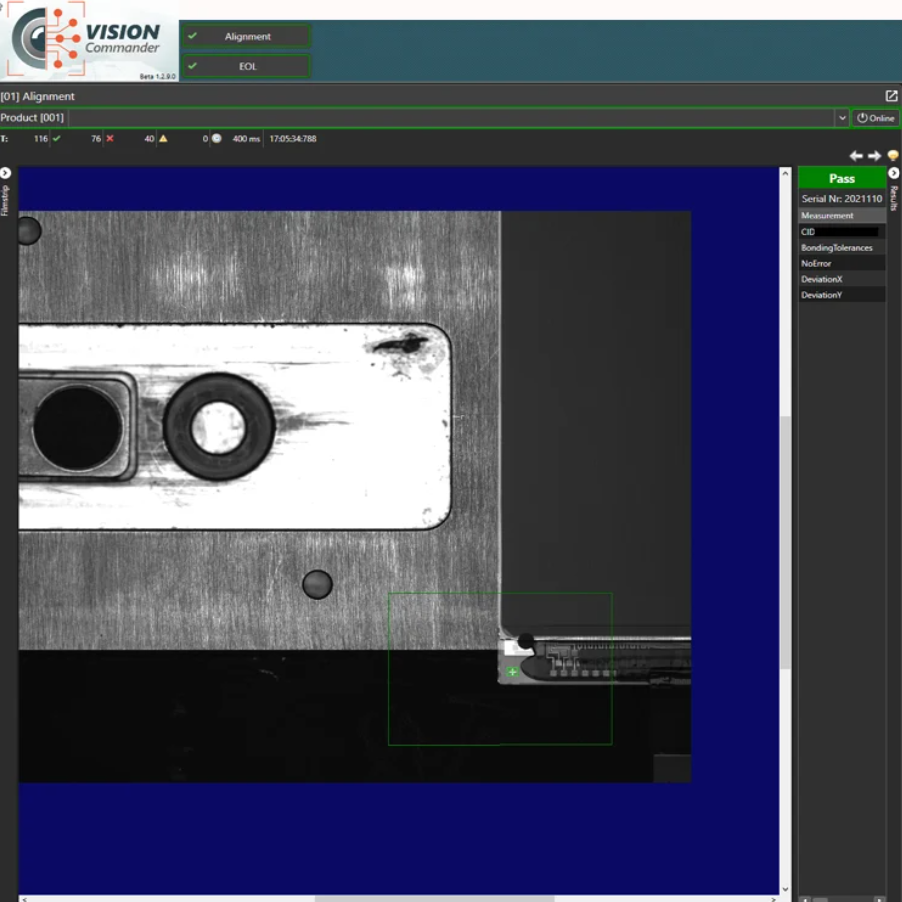

To meet these alignment challenges, senswork provided a high-precision camera system. The system accurately determines both the positional and rotational alignment of glass and display components before the bonding process begins. Using high-resolution imaging and advanced evaluation algorithms, the camera system delivers exact correction parameters to the positioning system, ensuring optimal alignment. All image evaluation and data processing are handled by senswork’s VisionCommander® software, which integrates seamlessly into automated production environments.

Process Execution

During production, fine positioning is achieved through an iterative correction process. Typically, only two to three iterations are required, during which the positioning system adjusts the component alignment based on correction parameters generated by the camera system. This fast feedback loop allows precise convergence to the target position before the actual bonding step takes place, minimizing cycle time without compromising accuracy.

ROI Calculator

Discover the potential cost savings of robotic automation over a 20-year system life

This calculator compares your current manual labor costs against the total cost of owning and operating a robotic system over its 20-year lifespan.

EXPLORE TODAY

Tasks

Within the hybrid bonding process, the camera and software system fulfills several critical tasks. It identifies the exact position of each component, determines the correct rotational orientation, and supplies precise correction data for fine positioning. These tasks are completed automatically and reliably, ensuring consistent alignment across large production volumes.

Results

By integrating senswork’s high-precision camera system and VisionCommander® software, the manufacturer achieved reliable and repeatable alignment in hybrid bonding processes. The solution delivers precise joining of glass and display components with minimal iterations, significantly improving throughput and yield. Direct integration into production lines enables stable, automated workflows, supporting the demands of modern high-volume touchscreen display manufacturing.

Would you like to learn more about VisionCommander® and its possible use cases? Click here to learn more.
