Automatic Drill Hole Detection for Airbag Assemblies

Overview

Detecting drilled holes with precision is vital for airbag assembly processes because it directly affects the accuracy of subsequent robotic operations. To address this need, a solution was developed to automatically identify and measure hole features of varying sizes across different airbag components and transfer their precise positions to a robot.

Challenges

One of the main challenges was the variety of hole sizes, as drilled holes differed in diameter and required a detection system capable of adapting to multiple dimensions. In addition, accurate detection depended on proper alignment with a reference coordinate system to ensure seamless integration with robotic processes. There were also strict cycle time constraints, meaning detection had to occur dynamically within the production cycle without slowing down operations.

Solution

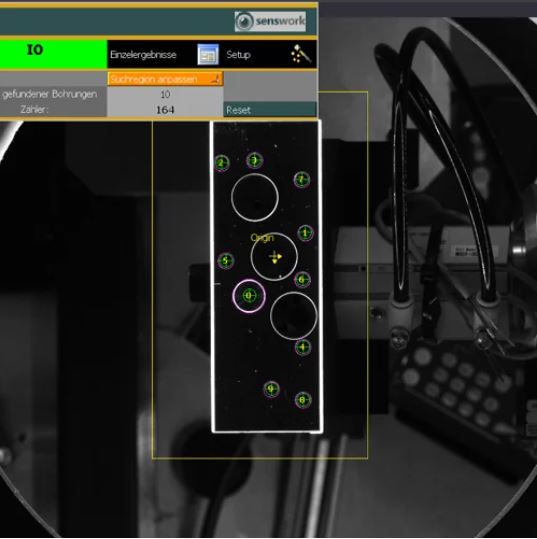

To overcome these challenges, senswork created a solution which combined dark field illumination with a circular detection algorithm. The dark field illumination enhanced the contrast of hole edges against the surface, enabling reliable detection even under varying lighting conditions. The circular detection algorithm allowed for precise identification of hole shapes and sizes, making it possible to detect features dynamically across different components. Furthermore, integrating a reference system ensured that all detected positions were accurately aligned for robotic positioning.

Certified System Integrator Program

Set Yourself at the Forefront of the Global Vision Market

Vision system integrators certified by A3 are acknowledged globally throughout the industry as an elite group of accomplished, highly skilled and trusted professionals. You’ll be able to leverage your certification to enhance your competitiveness and expand your opportunities.

GET CERTIFIED

Conclusion

Overall, the automatic drill hole detection system proved to be a reliable and efficient method for identifying and positioning hole features in airbag assemblies. The system delivered high versatility by detecting holes across a wide range of sizes without requiring additional adjustments. It also enabled dynamic feature detection, automatically adapting to component variations while maintaining consistent performance. By combining advanced illumination techniques with dynamic detection algorithms, the solution met production requirements while improving accuracy and adaptability, ultimately supporting a smoother and more efficient downstream robotic process.
