AV&R's Robotic Re-profiling Systems

Service Areas: International

AV&R

Knowing that fuel consumption is critical, the repair of aircraft engine parts is a major issue. Your parts will be systematically more accurate when using automated precision systems and your customers will be consistently satisfied with your productio

AV&R's Robotic Re-profiling Systems Image

This is AV&R's improved MRO Compressor Blade Re-profiling system with airfoil chord length and thickness measurements! The goal is to maximize repair yield and part life while reducing the turn-around time of your production.

With proven expertise in adaptive robotic profiling, our team has implemented its solution to the repair (MRO) market. Our blade re-profiling systems inspect the parts entering the machine and use the design of the original parts to adjust the work to be done to each piece. Combining vision and robotics, these innovative systems are a breakthrough in the engine component overhaul (MRO) industry.

Achieving an accuracy of ± 25 micron tolerance (± 0.9 thousandth of an inch or 0.025 millimeters), AV&R’s robotic systems meet the requirements of part repair plants by recreating high precision elliptical profiles on used blades as if they were new, minimizing the removal of parent material. To achieve such tight tolerances, our team has developed adaptive and closed-loop capabilities, coupled with final leading and trailing edge inspection.

Thinning of trailing edges and polishing of engine run blades can also be performed in these systems. As for the repeatability of inspection measurements, our systems achieve an R&R (EV) ≤ 12% for a tolerance of ±50µm/±.002″ within 4 sigma.

With these capabilities, our robotic re-profiling systems are the right choice to recreate the profiles of engine run parts during their service life, for both high and low pressure blades (HPC & LPC) as well as fan blades.

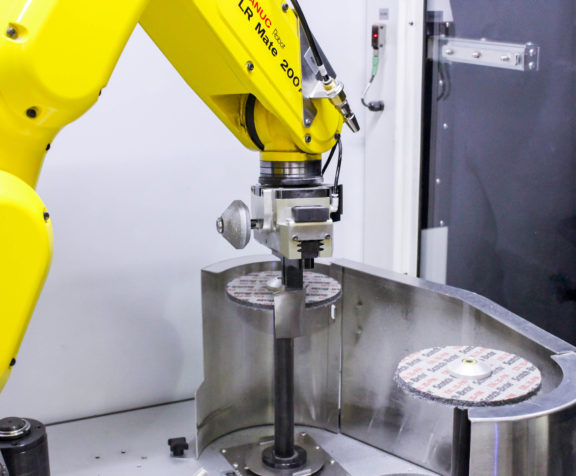

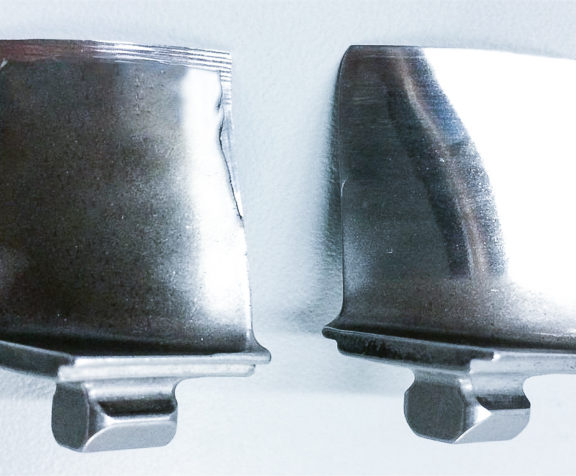

AV&R's Robotic Re-profiling System - BF-X 200-i Compressor Blades Fan Blades


Automated Re-profiling Benefits

From a business perspective, replacing manual profiling by precise robotic systems will:

  • Improve quality and consistency of your production by eliminating human subjectivity
  • Reduce the scrap rate and increase the life of your parts since the system removes minimal parent material
  • Reduce abrasive consumption
  • Reduce the risk of worker injuries

Main Technologies

  • Leading and trailing edge re-profiling
  • Trailing edge thinning
  • Foil, platform, and fillet polishing
  • Weld blending (in development)
  • Chord length feedback
  • Final edge profile feedback

Knowing that fuel consumption is critical, the repair of aircraft engine parts is a major issue. Your parts will be systematically more accurate when using automated precision systems and your customers will be consistently satisfied with your production.
