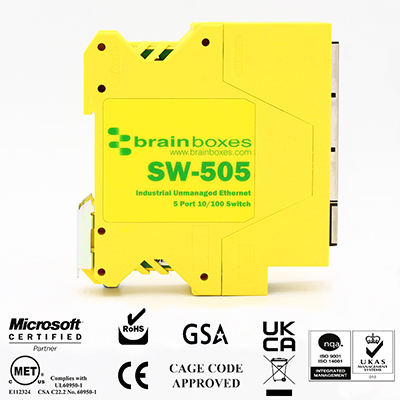

Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable (SW-505)

Industrial Compact Ethernet 5 Port Switch DIN Rail Mountable

• 5 Port Compact Ethernet Switch
• Integrated DIN Rail Mount with grounding
• Redundant dual power inputs: +5V to +30V DC
• Industrial operating temp range -40°C to +80°C / -40°F to +176°F
• Small Footprint Case, only 22.5mm wide, 94mm deep

PDF Datasheet Download

ROI Calculator

Discover the potential cost savings of robotic automation over a 20-year system life

This calculator compares your current manual labor costs against the total cost of owning and operating a robotic system over its 20-year lifespan.

EXPLORE TODAY

Industrial Compact Ethernet 5 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Only 22.5mm wide and 94mm deep. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for factory floor, in vehicle and marine applications.
