Founded in 1989, Yaskawa Motoman is a leading robotics company in the Americas. With over 600,000 Motoman robots installed globally, Yaskawa provides automation products and solutions for virtually every industry and robotic application.
Product filed under:
End of Arm Tooling, Industrial, and Robots End of Arm Tooling, Industrial, and Robots

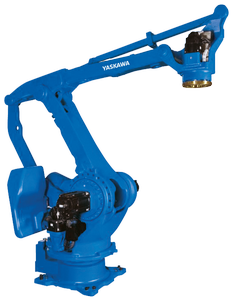

PL-Series Palletizing Robots
Model: PL80, PL190, PL320, PL500, PL800
Highly versatile, these high-speed 4-axis robots are ideal for a range of palletizing applications, as well as order picking and other logistical tasks for end-of-line or distribution automation. They feature a performance-driven design with heavy-duty bearings, parallel-link construction and high allowable moment of inertia expertly handles large, unbalanced loads, while very fast axis speeds and acceleration capabilities reduce cycle time for increased production. Internally routed cables and airlines maximize reliability and a large pass-through on the T-axis (60 mm or 75 mm depending on the model) enables easy connection to end-of-arm tooling.
These models are offered with 80 kg, 190 kg, 320 kg, 500 kg, and 800 kg payload capacities.
