Xenics Product
Xenics is a designer and manufacturer of infrared sensors, cores and cameras.
Product filed under:
Camera Link, Cameras & Smart Cameras, and GigE Vision Camera Link, Cameras & Smart Cameras, and GigE Vision

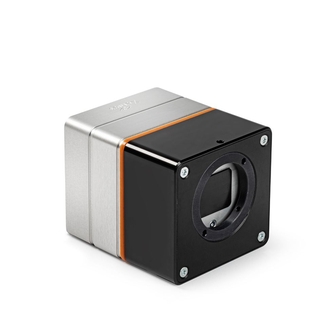

Compact, high-resolution thermal camera
The Ceres V 1280 series is based upon the Dione 1280 OEM thermal imaging core with 1280×1024 pixels and 12 µm pixel pitch and NETD of less than 40 mK (available upon request) or 50 mK. The camera offers superior thermal imaging capabilities, thanks to the state-of-the-art microbolometer detector and on-board image processing.
The Ceres V 1280 camera outputs full frame images at 60 Hz via either a CameraLink or at 45 Hz via a GigE Vision interface – all GenICam compliant.
The compact size Ceres V 1280 series offers excellent image quality and find applications in industrial machine vision, medical, scientific and security thermal imaging systems.
The camera offers either a no lens configuration or with different HFOV (Horizontal Field-Of-View) options.
Benefits & Features
• Compact and high-resolution
• Superior on-board image processing performance (optimized image quality)
• GenICam compliant
• Uncooled operation
For more information: CERES | Exosens
