WINSYSTEMS is a U.S.-based solutions provider of embedded computer systems. We design and build highly reliable, long life COM Express modules and carrier boards, single board computers (SBCs), industrial PCs, touch-panel computers, and I/O expansion modules.
Product filed under:
Computers and Industrial Computers and Industrial
The SYS-480 functions as an edge gateway computer by combining computing, networking, and power delivery with four 2.5GbE PoE+ Ethernet

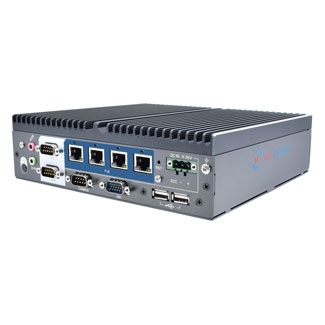

SYS-480 Rugged Industrial PC
Key Specifications
- Form Factor: SFF industrial PC
- Processor: Intel Atom x7433RE (Amston Lake)
- Architecture: x86
- Max Memory: 16GB DDR5 SO-DIMM
- Graphics: Integrated Intel UHD Graphics
- Storage: Outside accessible 2.5″ SATA tray, SD slot and SIM slot
- Networking: 4x PoE+ 2.5GbE
- USB Ports: USB 3.2 and USB 2.0
- Serial Ports: 2x RS-232
- Expansion: Mini PCIe and 2x M.2 B Key sockets for 4G/5G/LTE, Wi-Fi/Bluetooth, GNSS or storage
- Display Interface: 2x HDMI
- Power Input: 9V-36V DC
- Operating Temperature: -40°C to +70°C
- Cooling: Fanless
- Rugged Features: Wide temperature, shock and vibration tolerant
Learn more at https://www.winsystems.com/product/sys-480.
