Welker's new belt-driven linear slide offers a cost and space-saving alternative to conveyors.
Welker’s new BES belt-driven linear slide offers a cost and space-saving alternative to conveyors & screw-driven slides. With faster speeds and lower maintenance requirements, the BES is a great solution for automated motion control, and part placement applications.
Constructed with an enclosed aluminum extruded frame to protect from contaminants, it is designed with a high-performing, steel-reinforced polyurethane timing belt. This synchronous belt-driven unit includes 35 series linear guides with roller-bearing carriages for increased payload and durability.
· Max Payload: 360kf [793lb] centered
· Max Recommended Load Size: 900mm x 1200mm
· Max Speed: 0.74m/s [VFD] or 1.0 m/s [Servo]
· Repeatability: +/- 1.0mm [VFD] or +/- 0.15mm [Servo]
· Standard Stroke Length: 400mm to 8800mm in 400mm increments. (Contact Welker for longer stroke lengths)
Other Products from Welker Engineered Products

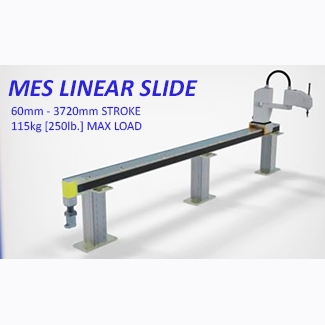

Welker's MES Belt-Driven Extrusion Slide for Light-Duty
