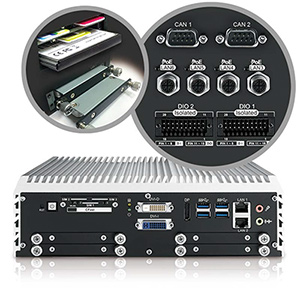

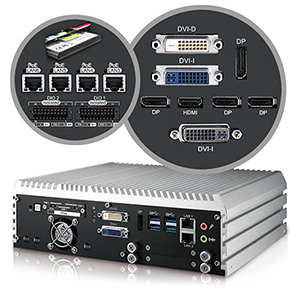

Flexible LGA1151 Socket supports the latest 7th generation Intel® Core™ i7/i5/i3 processor (Kaby Lake-S) and workstation-grade Intel® Xeon®/Core™ i7/i5/i3 processor (Skylake-S) running with advanced Intel® C236 chipset and dual-channel DDR4 2133MHz ECC memory, up to 32GB capacity; Advanced Intel® HD Graphics 630/530 supporting DirectX 12, OpenGL 4.4 and OpenCL 2.0 API, onboard DVI-I, DVI-D and DisplayPort display interfaces for Ultra HD 4K resolution. Vecow IVH-9200MXC and ECS-9200MXC make new generation CPU performance, power efficiency, and graphics performance possible. PCIe 3.0 (8GT/s), Multiple SATA III (6Gbps), USB 3.0 (5Gbps), PoE (1Gbps) LAN and multiple wireless connections support seamless high-speed data transmission. Vecow IVH-9200MXC and ECS-9200MXC Series Fanless Embedded Systems deliver outstanding system performance and power productivity for demanding computing workloads. All-in-one and cable-less designs, fanless -40°C to 75°C extended operating temperature, 10 independent GigE LAN ports with 8 IEEE 802.3at (25.5W/48V) PoE+ without additional power connections and up to 4 X-coded M12 connections, 4 front-access 2.5” SSD/ HDD trays supporting up to 8TB capacity and RAID 0, 1, 5, 10 data protection, 2-port CAN Bus, 3 external SIM card sockets for 3G/4G/LTE/WiFi/GPRS/UMTS, 1 M.2, socket, 1 M2DOM socket for up to 8GT per second data transfer, 1 front-access CFast socket, 4 SATA III for software RAID functions, 8 external USB 3.0, 4 COM RS-232/422/485, 32 Isolated DIO, 6V to 36V wide range power input with 80V surge protection, configurable ignition power control, smart remote management features, remote power switch, EN50155 and EN50121-3-2 compliant, Vecow IVH-9200MXC and ECS-9200MXC Series Fanless Embedded System serves all-in-one integrated features, versatile I/O functions, and rugged reliability in harsh environments.
