Vecow Co., Ltd. Product

4-port/2-port 10GigE PoE+ Expansion Card

Model: PE-5000 (10G PoE+)

Vecow Co., Ltd.

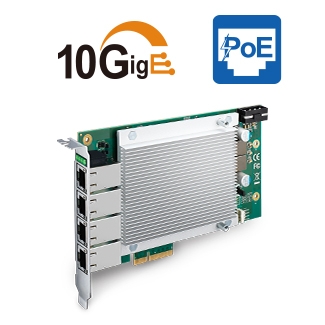

Image of 4-port/2-port 10GigE PoE+ Expansion Card

- Intel® XL710/Intel® X550-AT2 10GBASE-T Ethernet Controller supports 4-port/2-port independent 10GigE LAN, up to 10Gbps data rate  - PCI Express x8 (PE-5004), PCI Express x4 interface (PE-5002),  PCIe 3.0 supports up to 8.0 GT/s  -IEEE 802.3at Power over Ethernet (PoE+), up to 25.5W Power Output at 48V DC per port, with PoE+ On/Off Control -IEEE 1588 Precision Time Protocol (PTP) and IEEE 802.1AS Precision Timing Synchronization compliant -Up to 9.7KB Jumbo Frame, Link Aggregation -Supports IEEE 802.3az Energy Efficient Ethernet (EEE) and DMA Coalescing Power Management Features -Supports NBASE-T technology (2.5 and 5.0 GbE over CAT 5e/CAT 6)
-25°C to 60°C Operating Temperature (PE-5002), -25°C to 55°C Operating Temperature (PE-5004)
