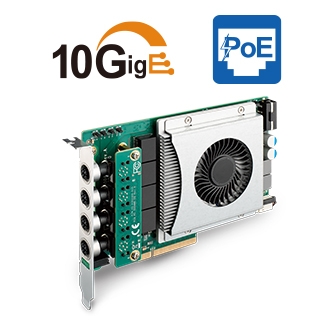

4-port X-coded M12 10GigE PoE+ Expansion Card
Model: PE-7004MX (M12 10G PoE+)
- Intel® X550-AT2 10GBASE-T Ethernet Controllers support 4-port independent 10GigE LAN, up to 10Gbps data rate -PCI Express x8 interface, PCIe 3.0 supports up to 8.0 GT/s -IEEE 802.3at Power over Ethernet (PoE+), rugged X-coded M12 connectors, up to 25.5W Power Output at 48V DC per port, with PoE+ On/Off Control -IEEE 1588 Precision Time Protocol (PTP) and IEEE 802.1AS Precision Timing Synchronization compliant -Up to 15.5KB Jumbo Frame, Link Aggregation -Supports IEEE 802.3az Energy Efficient Ethernet (EEE) and DMA Coalescing Power Management Features -Supports NBASE-T technology (2.5 and 5.0 GbE over CAT 5e/CAT 6) - -25°C to 60°C Operating Temperature
