Vecow Co., Ltd. Product
Vecow is a team of edge computing professionals. We are dedicated to designing, developing, producing, and selling industrial-grade computer products.
Product filed under:
Industrial, Software & AI, and Vision Systems Industrial, Software & AI, and Vision Systems

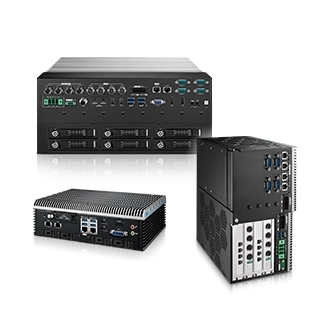

13th Gen Intel® Core™ i9/i7/i5/i3 Processor Robust Edge AI Platforms
Model: IVX-1000/ECX-3000/ECX-3000 {EG
- ECX-3000 PEG AI Computing System
Workstation-grade Platform : 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S) running with Intel® 600 Series Chipset, max 65W TDP CPU - DDR5 4800MHz Memory supports up to 64GB, optional ECC supported - Supports outstanding AI computing productivity by NVIDIA®/AMD graphics card, up to 200W power budget - USB 3.2 Gen 2x2 offers a max speed of 20Gbps data transfer - DC 12V to 50V wide range power input, Software Ignition Control - Supports multiple 5G/WiFi/BT/4G/LTE/GPRS/UMTS - Supports Intel® TPM 2.0, TSN - Storage : Max. 4 front-access 2.5" SSD Tray, M.2 Key M
- IVX-1000 ICY (M12) High-performance Fanless Systems
Workstation-grade Platform : 13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S) running with Intel® 600 Series Chipset supports performance hybrid architecture and advanced AI capabilities for smarter and faster applications. - Optional supports outstanding AI computing productivity by advanced and compact NVIDIA® Quadro® MXM graphics - 16V to 160V DC Power Input with 4kV DC Isolation, up to 500V Surge Protection, Software Ignition Power Control, UPS supported - Fanless design for railway in-vehicle applications, fully compliant with EN50155 : 2017 - 8 Independent 2.5GigE LAN M12 X-coded with 4 IEEE 802.3at PoE+, 1 2.5GigE LAN, 1 GigE LAN, 4 Isolated COM - Up to 6 front-access 15mm height SSD/HDD Tray, multiple 5G/WiFi/4G/3G/LTE/GPRS/UMTS - Supports Intel® TPM 2.0 and Time-Sensitive Networking (TSN) - Optional VHub AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
- ECX-3000 High-performance Fanless Systems
13th Gen Intel® Core™ i9/i7/i5/i3 Processor (Raptor Lake-S) with intelligent workload optimization, up to 36% CPU performance improved - Intel® UHD Graphics 770 driven by Intel® Xe Architecture, with max 94% graphics performance and 181% GPU image classification inference performance enhanced - 8 Independent 2.5G LAN with 4 IEEE 802.3at PoE+ - 4 Front-access M.2 SSD Tray, 6 USB 3.2 Gen 2 - DC 9V to 50V Power Input, Software Ignition Control - Supports Intel® TPM 2.0 and Time-Sensitive Networking (TSN) - Optional VHub One-Stop AIoT Solution Service supports OpenVINO based AI accelerator and advanced Edge AI applications
