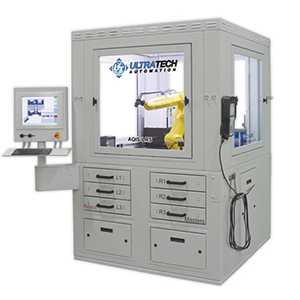

AQIS-LR5: Automated Inspection Cell
The 5-foot by 5-foot AQIS-LR5 inspection cell can easily be integrated into existing production lines or as a stand-alone system. Utilizing automation will increase inspection frequency and achieve higher repeatability while offering a faster, more accurate and consistent method of quality control.
STAND FEATURES OF THE AQIS-LR5:
- Allen Bradley CompactLogix Cell Controller
- 17-inch Industrial Panel PC Operator Station/HMI
- Fanuc LR MATE Robot
- 3-Position Part Drawer for Material Infeed/Outfeed
- 4-Standard Gauge Plates for Device Mounting
- Total System SPC Integration
INSPECTION / MEASUREMENT EXAMPLES:
- Diameter/Length Measurement
- Concentricity/TIR
- Torque Measurement
- Assembly/Force Measurement
- Thread Verification
- Process Monitoring
- Surface Roughness
CONFIGURATION EXAMPLES:
Inspection Equipment
- CMM
- Hard Gauge/LVDT
- Vision
- Laser
- Comparative Gauging
Secondary Processes
- Part Blow Off
- Marking
- ID Confirmation
Software Options
- Gauge Interface/Data Acquisition
- SPC
- Enterprise Data Reporting
- Portable Web Server
- Auto CNC Offset Compensation
- Image Management
- Process Monitoring (Torque or Force
INDUSTRIES SERVED:
- Aerospace
- Automotive
- Consumer Products
- Defense
- Energy
- Manufacturing
- Medical
If you're interested in learning more about the AQIS-LR5, please contact us at (330) 929-5544.
