Toshiba Teli Corporation Product
Toshiba Teli Corporation develops and manufactures CMOS and CCD cameras for machine vision, industrial automation, inspection, measurement, robotics, 3D, pick and place, AOI and medical imaging. The product assortment includes Gigabit, Firewire, PoCL®, Camera Link®, line scan, analog, RS170 (EIA), CCIR, near infra-red, remote head cameras, mini-cube and HD CMOS cameras using CCD and CMOS sensors up to 12 megapixel. Toshiba Teli Corporation also manufactures OEM cameras and HD LCD Monitors for the medical industry. Please visit our website to request more information or a demonstration of our products including our 12 MP 4K x 3K resolution camera running a full 25FPS and our new HD CMOS 60FPS. Our products are subject to total in-house manufacturing from the procurement and supply of components to assembly, wiring and inspection. We build on established technology with state-of-the-art innovations that support constant efforts to maintain the very highest quality levels in our products.
Product filed under:
Block Cameras, Cameras & Smart Cameras, and USB Cameras Block Cameras, Cameras & Smart Cameras, USB Cameras, and USB3 Vision
See More

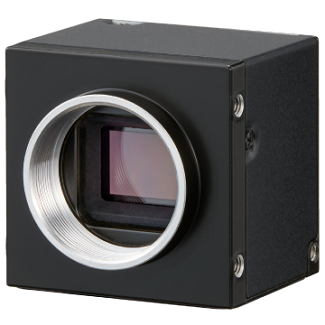

DDU series have USB3.1 Gen1 (USB3.0) interface for image output and control. With Dual USB3.1 Gen1 interfaces, DDU series provides double the transfer bandwidth of conventional cameras with a single interface, making it possible to capture images at higher speed. Compact and light, suitable for set in equipment. 3 years warranty. Wide product range from 12.3M to 16M.
[Models]
DDU1207MG / DDU1207MCG / DDU1207MCF / DDU1607MG / DDU1607MCG / DDU1607MCF
[Key features]
- USB3 Vision Ver.1.0 conformity.
- GenICam conformity Ver.2.4 / Ver.3.0.
- IIDC2 Digital Camera Control Specification Ver.1.1.0.
- Body size in most compact class is suitable for setting in equipment.
- Power is supplied by USB cable.
- e-CON connector is equipped.
- "Teli Core Technology" contributes to the enhancement of the response speed of camera systems.
- TELI original software "TeliCamSDK" is available to free download as SDK.
- "Event notifications" camera notified status information via event Packet.
- "BUS synchronization mode" synchronized exposure timing of multiple cameras.
- "Bulk trigger mode" outputs multiple images by one trigger input.
- "Sequential shutter mode" allows output several different setting image.
- "Image buffer" allows readout image data from host PC on demand.
- "Scalable mode and binning mode" higher speed image scan is available.
- "BERT function" measures correspondence quality of cables.
