Teledyne DALSA Product
Teledyne DALSA is a part of Teledyne’s Vision Solutions group and a leader in the design, manufacture, and deployment of digital imaging components for machine vision.
Product filed under:
Multispectral / Hyperspectral / Thermal Cameras Multispectral / Hyperspectral / Thermal Cameras
This latest uncooled thermal camera platform features the smallest VGA IRA core module on the market, making it ideal for OEM drones, handhelds, helmet-mounted and vehicular integration product

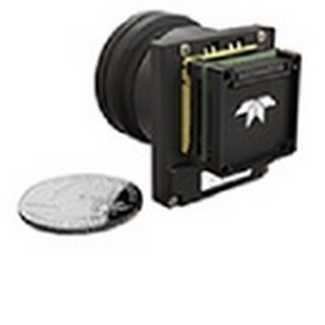

Teledyne's MicroCalibir™ uncooled thermal camera platform features the smallest VGA IR core module on the market, making it ideal for OEM drones, handhelds, helmet-mounted and vehicular integration products.
The development of the small and lightweight MicroCalibir is a result of the latest advances made by Teledyne’s integration of their in-house 12 μm microbolometer pixel technology with a deep-ADC ROIC circuit. This novel ROIC design results in a 1000°C intra-scene temperature range at a sub-50mK NETD.
Its pocket-sized 21 x 21 mm format offers the latest Size Weight and Power (SWaP) optimization for this type of LWIR imager, with very high dynamic range.
Furthermore, the cameras can reach very low, sub-30mK, NETD levels by utilizing advanced, user selectable noise filtering algorithms.
The MicroCalibir platform delivers accurate and high-end thermal capabilities and can be configured by resolution, field of view, and frame rate, to deliver optimal performance in applications such as UAVs, security and surveillance, outdoor recreation/personal vision systems, firefighting and many more.
MicroCalibir cameras and cores are available in QVGA and VGA resolutions and a variety of lens options. Its modular design allows for different interface options, for today and for the future.
