Tecnotion Product

UMV – Vacuum G2 series

Model: UMV Series G2

Tecnotion

High positioning accuracy and repeatability.

Image of UMV – Vacuum G2 series

Generation 2 vacuum ironless linear motor series is designed with the unique challenges of vacuum applications in mind and based on years of collaboration with high-end semiconductor manufacturers. The portfolio is suitable for even the strictest vacuum requirements with a large force range.

The UMV coils are the smallest coils in the vacuum-rated linear motor series. Specifically suitable for low loads and tight spaces because of the short length. This motor is ideal for positioning e.g. in gantries, or high dynamic, light weight applications which require extreme accuracy.

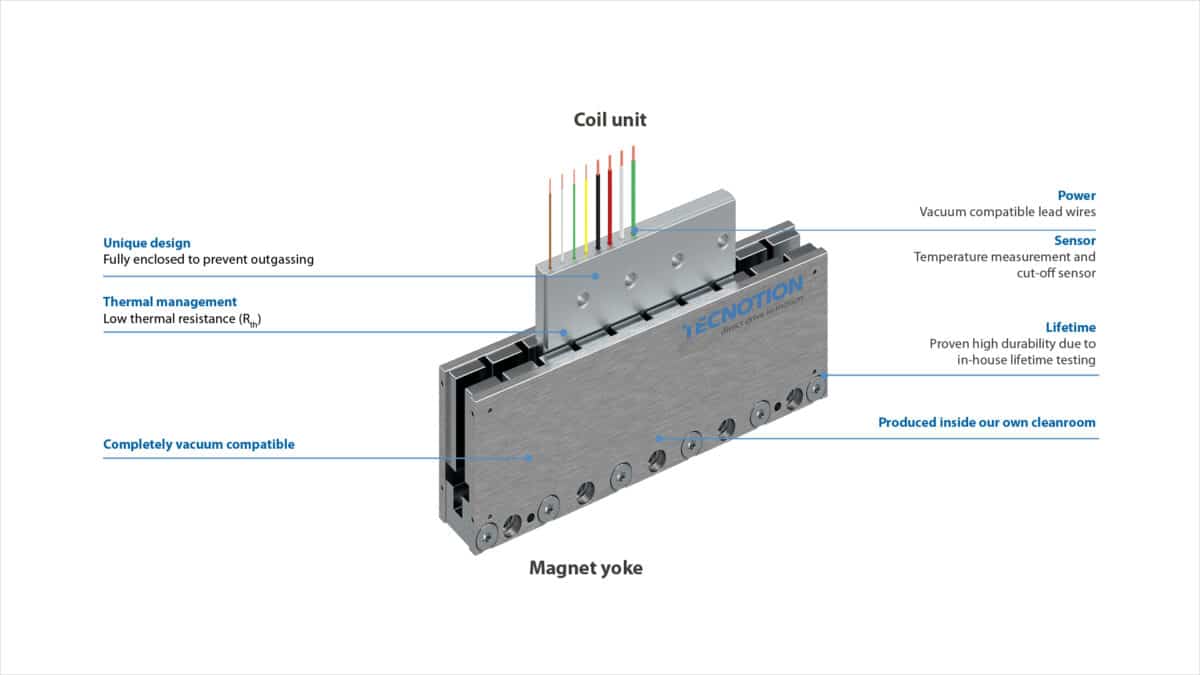

Umv Vacuum G2 Motor Properties
