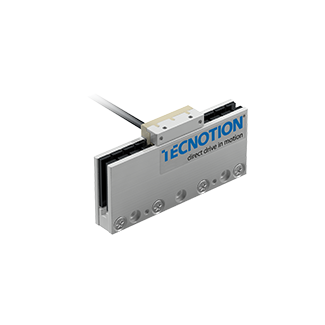

Small but ready to do its job.
The UC is our smallest standard motor. Weighing in at just a few grams, this versatile, compact and affordable motor is still able to sustain a continuous force of 10 or 20N. Due to its low weight it is also suited to operate in a vertical application environment.
Peak force: 36 – 72 N
Continuous force: 10 – 20 N
Coil Units: UC3 – UC6
Magnet Yokes: UC66 – UC99 – UC264

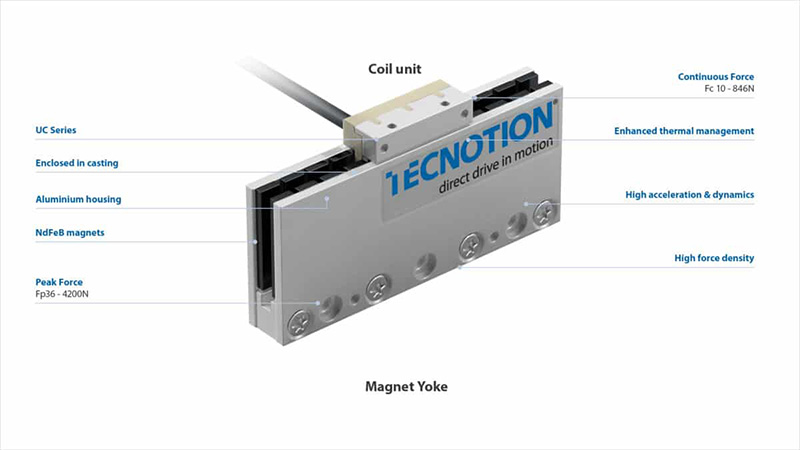

In contrast to iron core motors, these motors feature an ironless coil unit, so there is no attraction force or cogging between the coil unit and the magnet track. This gives ironless motors their light weight, superior precision, a linear force constant, and extremely dynamic velocity, acceleration, and deceleration. Continuous force ranges from 10N all the way up to 846N with a peak force of up to 4200N.
Advantages of ironless motors
- With high acceleration and dynamics, the outstanding force-to-mass ratio of the ironless coils enables unmatched system dynamics.
- No cogging, extremely low force ripple, the motors have no cogging effects. Offering smooth motion and position accuracy in your application.
- Approved for CE and ROHS
- Low thermal resistance. This allows good heat transfer and achieves an extremely high continuous force for all motors when using a descent-size heatsink or active cooling.
Many industries benefit, such as semiconductors, display, inspection/ultra-precision stages, medical / life science/lab automation, and optics.
Other Products from Tecnotion

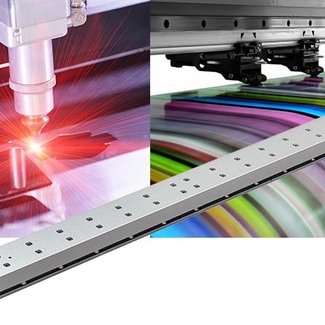

Iron core motor- TL 48
