CubeMars customized mini motor 24V36V 48V RI80 KV75 for robot application
Model: RI80 KV75
Note: We are factory supplier. All our motors can be customized in torque voltage rpm output size etc. Pls feel free to contact us for more details and requirements..
More Drawings And Requirements .Pls contact Us !

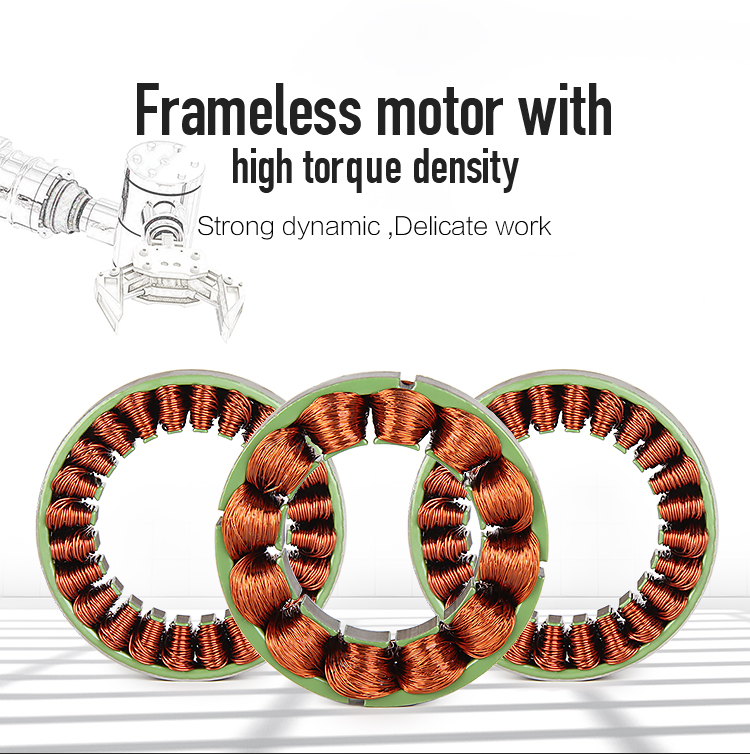

Tmotor RI80 frameless bldc low torque high speed rotor and stator dc motor 48v 1000w.
|
Motor Parameters/Dimensions |
RI50/5422 |
RI60/6030 |
RI70/7638 |
RI80/8540 |
RI100/10445 |
|
Motor Type |
Frameless In-runner motor |
Frameless In-runner motor |
Frameless In-runner motor |
Frameless In-runner motor |
Frameless In-runner motor |
|
Weight(g) |
200 |
165 |
275 |
470 |
550 |
|
Voltage(V) |
48 |
48 |
48 |
48 |
48 |
|
Rated Torque(N.m) |
0.58 |
0.58 |
0.94 |
1.45 |
1.75 |
|
Peak Torque(N.m) |
1.63 |
1.64 |
2.63 |
4 |
4.92 |
|
Max Speed@Rated Torque(Rpm) |
4000 |
3900 |
3200 |
3200 |
3100 |
|
Rated Current(A) |
5 |
6.3 |
7.9 |
10 |
15.5 |
|
Peak Current(A) |
14 |
18 |
22 |
28 |
43 |
|
Kt(N.m/A) |
0.104 |
0.083 |
0.106 |
0.1308 |
0.1005 |
|
Ke(V/rpm) |
0.0109 |
0.0087 |
0.0111 |
0.0137 |
0.0106 |
|
Kv(Rpm/v) |
92 |
115 |
90 |
73 |
95 |
|
Km(Nm/√w) |
0.1658 |
0.1088 |
0.1807 |
0.4313 |
0.3368 |
|
Pole-paors |
7 |
14 |
14 |
7 |
14 |
|
Phase to Phase resistance(mΩ) |
395 |
585 |
350 |
92 |
98 |
|
Phase to Phase Inductance(uH) |
247 |
375 |
314 |
155 |
228 |
|
OD(mm) |
54 |
60 |
76 |
85 |
104 |
|
ID(mm) |
22 |
30 |
38 |
40.5 |
45 |
|
Max Torque Weight Ratio(N.m/kg) |
8.15 |
10 |
9.5 |
8.5 |
9 |

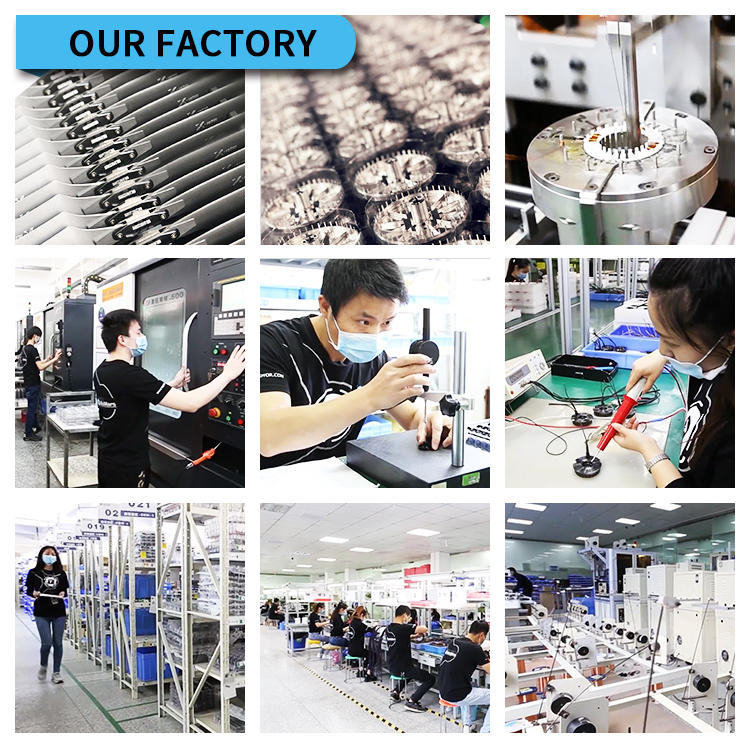

Our Company
Packing & Delivery
FAQ
Q1: Are you manufacturer?
A: Yes.We are the headoffice & manufacturer of T-MOTOR brand .
We can do both OEM and ODM. We have our own R&D team.
Q2: Can I get a free sample?
A: Generally we don't provide free sample, but we can return sample cost when you place format orders .
Q3: What are the shipping methods?
A: DHL express is default delivery . Usually it will take 3-5 days to arrive your place . We accept UPS , FedEx and others you required .
Q4: How is your warranty service?
A: We do strict test before shipping and guarantee for 365 days. We pay high attention to after-sales service.
Q5: What's the payment method?
A: We accept Alibaba trade assurance , Paypal , Bank transfer , Credit card .
