Cubemars Camera Stabilizer Mini hollow shaft Brushless Handheld Gimbal Motor

Model: R80 KV110

Jiangxi Xintuo Enterprise Co.,Ltd

• Integrated with hall sensors, Edeg120±20° • Special heat dissipation design • Low cogging torque&rotor inertia • Max torque 4Nm

Image of Cubemars Camera Stabilizer Mini  hollow shaft Brushless Handheld Gimbal Motor

Product Description

Note: We are factory supplier. All our motors can be customized in torque voltage rpm output size etc. Pls feel free to contact us for more details and requirements.

MORE ABOUT THIS MOTOR .

So in order for a motor of this large size to be servo capable, we start by reducing the moment of inertia.

The weight reduction design allows us to control it very easily through the controller,

 Of course, we will help you install hall sensor or encoder.

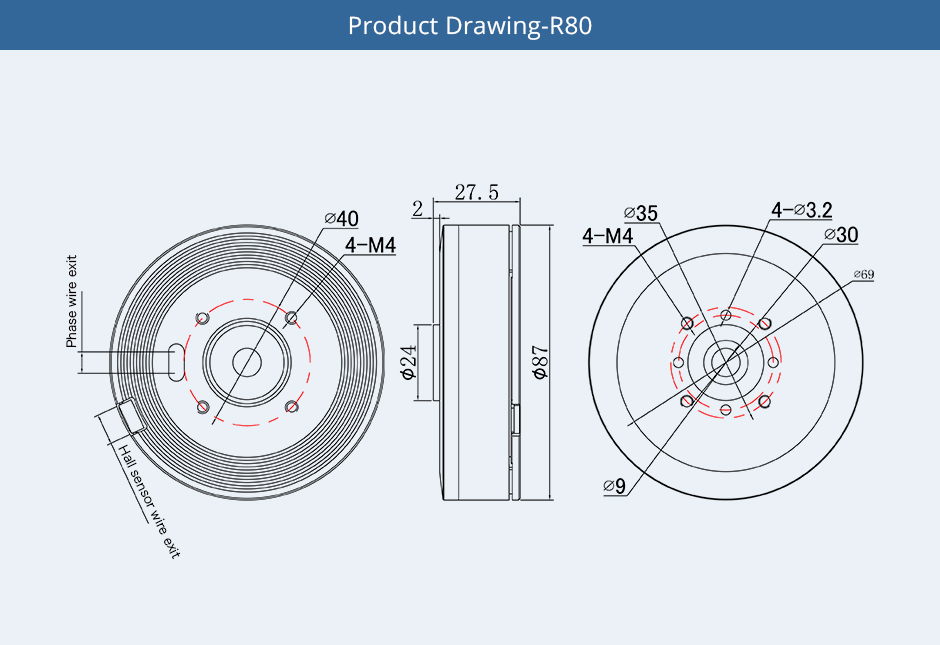

Cubemars-Camera-Stabilizer-R80-Product-Drawing

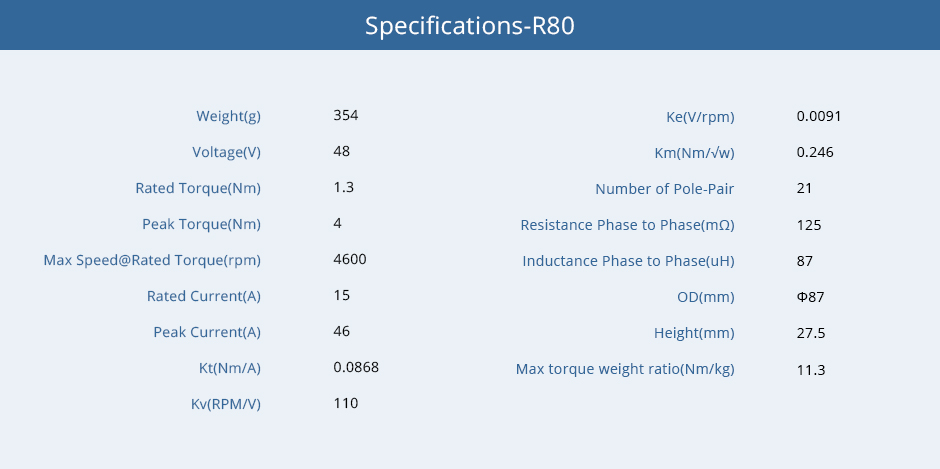

Cubemars-Camera-Stabilizer-R80-Specifications

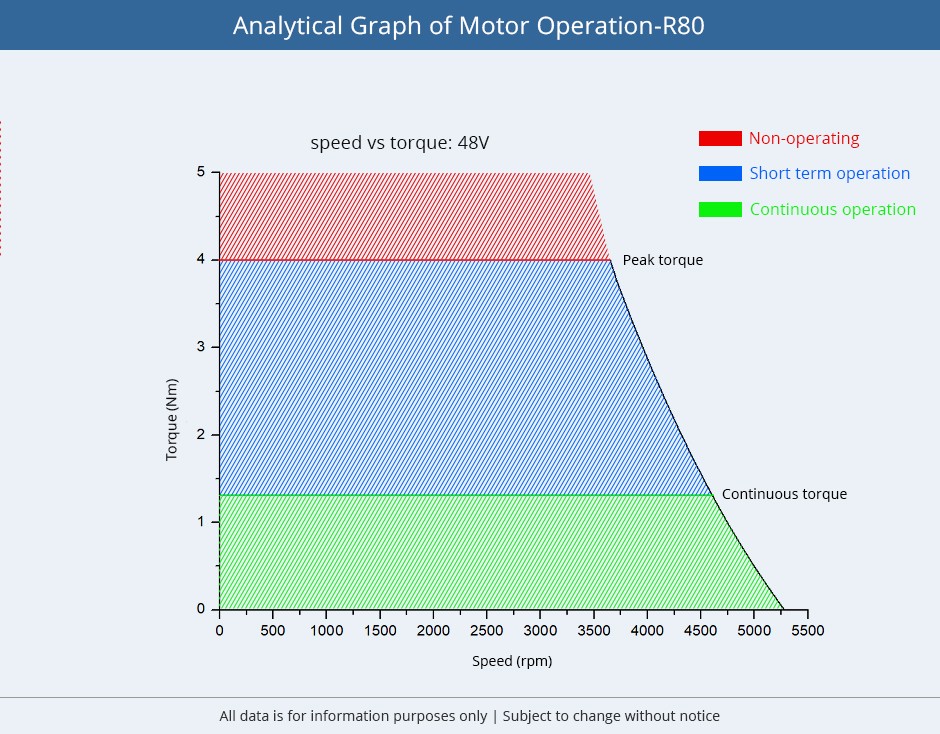

Cubemars-Camera-Stabilizer-R80-Analytical-Graph-Motor-Operations

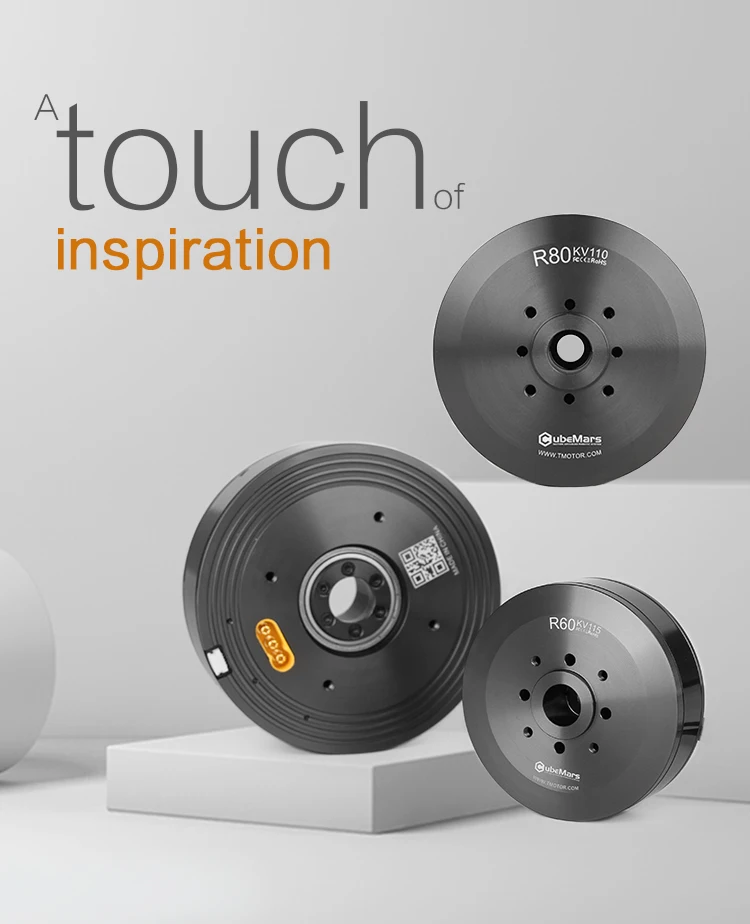

Cubemars-Camera-Stabilizer-R80

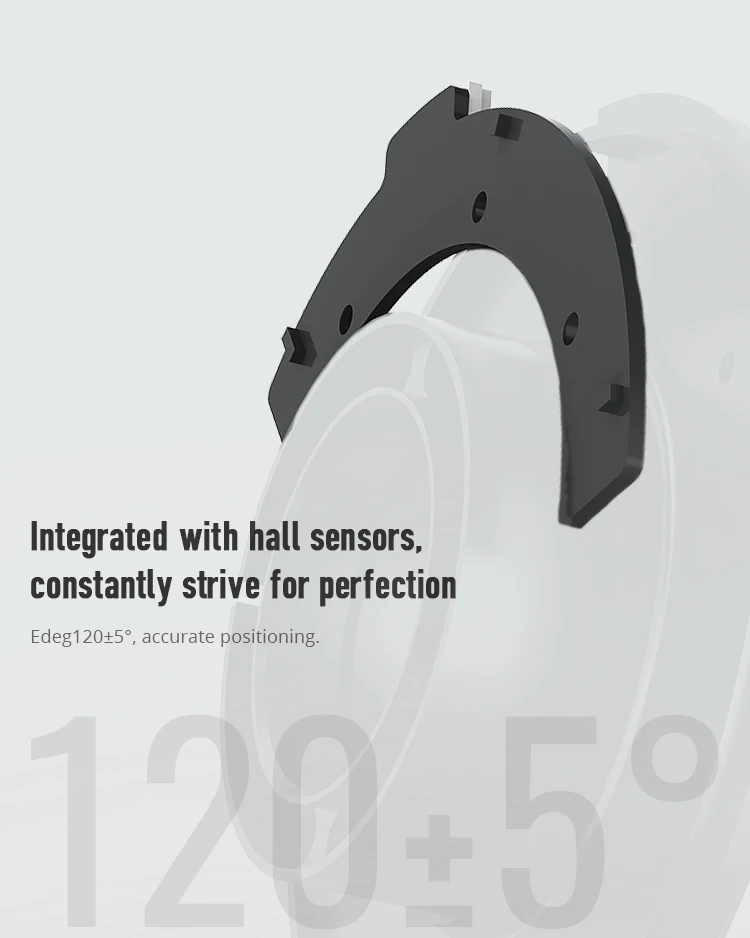

Cubemars-Camera-Stabilizer-R80-Integration

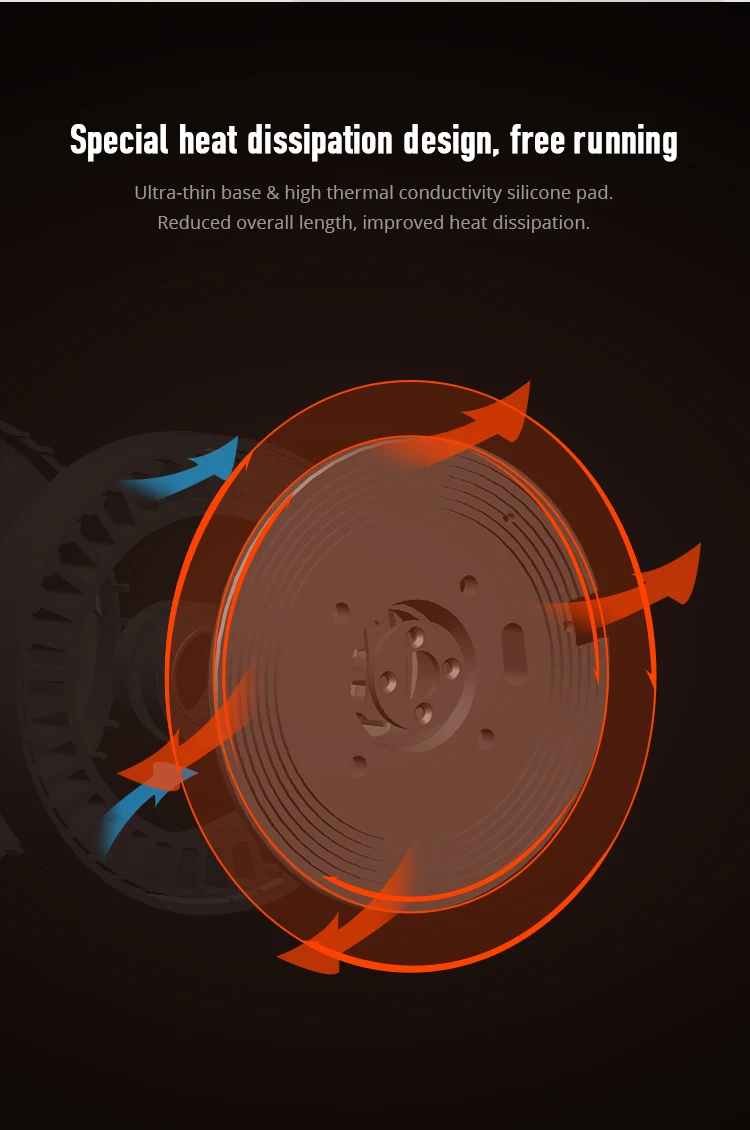

Cubemars-Camera-Stabilizer-R80-Dissipation

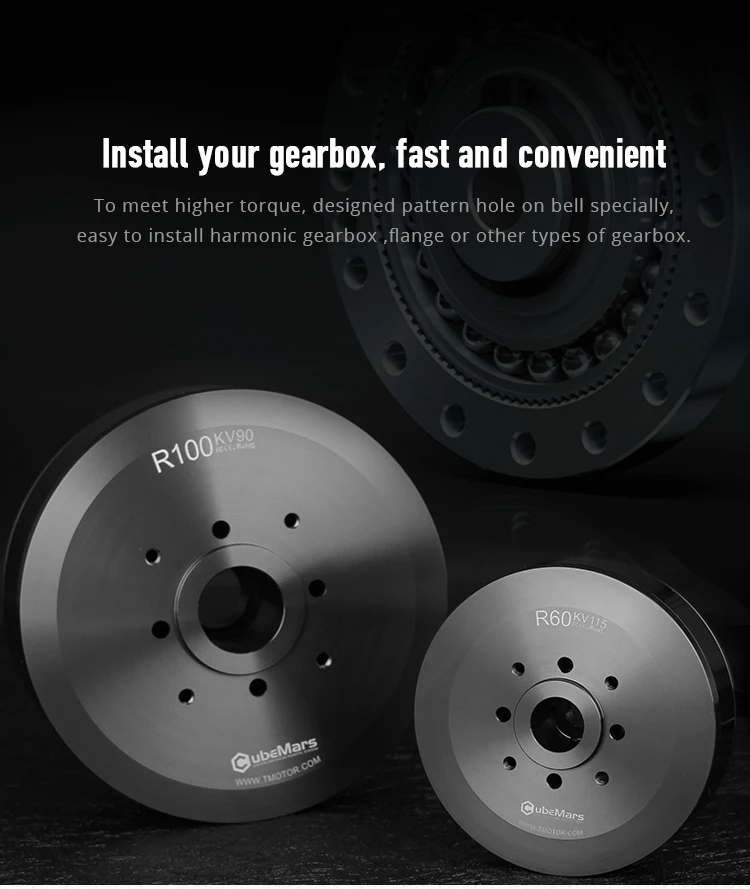

Cubemars-Camera-Stabilizer-R80-Gearbox

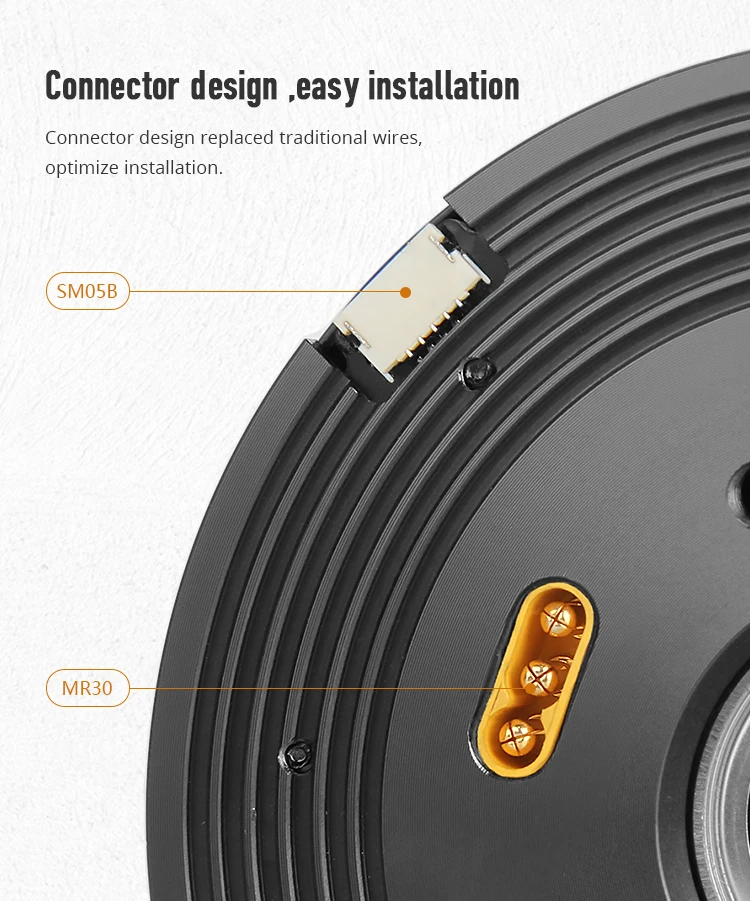

Cubemars-Camera-Stabilizer-R80-Connector

Cubemars-Camera-Stabilizer-R80-Electromagnetic-Stimulation

Cubemars-Camera-Stabilizer-R80-High-Quality

Cubemars-Camera-Stabilizer-R80-Applications



Our Company

Company-Profile

About-Us

Exhibition

Cubemars-Camera-Stabilizer-R80-Production-Process

Cubemars-Camera-Stabilizer-R80-Team

Our-Team

Packing & Delivery

CubeMars-Shipment-Payment

FAQ



Q1: Are you factory supplier?
A: Yes, we are factory supplier with more than 25 years experience. We can do both OEM and ODM. We have our own R&D team.

Q2: What is your MOQ?
A: MOQ is 1 pcs both stocky and custom products.

Q3: Can I get a free sample?
A: Generally we don't provide free sample, but we can return sample cost when you place mass orders.

Q4: How long is the delivery time?
A: In general, the delivery time is 3 to 7 working days after received depoist.

Q5: What is your guarantee term?
A: The warranty period for our products is one year along with technical support and free return.

Q6: How about your after-sale service?
A: We provide technical support via online communication.Moreover, if you need, we can also send our technical staff for onsite installation or debugging. Welcome to visit our factory to learn and check the robot motor.

Q7: What are the payment methods?
A: We accept Alibaba trade assurance , Paypal , Bank transfer , Credit card, L/C.


Pls feel free to send inquiry for more details, we are on-line 24 hours for you!!!
