Nanchang Kude Intelligent Technology Co., Ltd. Product

CubeMars Direct drive motor AK10-9 outrunner Brushless DC Motor for AGV

Model: AK10-9 KV100

Nanchang Kude Intelligent Technology Co., Ltd.

Precision planetary gear box motor speed reducer

Image of CubeMars Direct drive motor AK10-9 outrunner Brushless DC Motor for AGV



CubeMars AK10-9 Introduction

CubeMars AK10-9

CubeMars AK10-9 Rear

Motor NO.

AK10-9

Weight(g)

820

Voltage(V)

48V

Rated Torque(N.m)

18nm

Peak Torque(N.m)

54nm

Max Speed@Rated Torque(Rpm)

445

Rated Current(A)

22A

Peak Current(A)

68A

Kv(Rpm/v)

100



Application

Biped Robot Quadruped Robot, Collaborative Robot, Robot Arm, Robot joint, Mit Cheetah, Exoskeleton.

Products Show

CubeMars AK10-9 Passion Dynamic

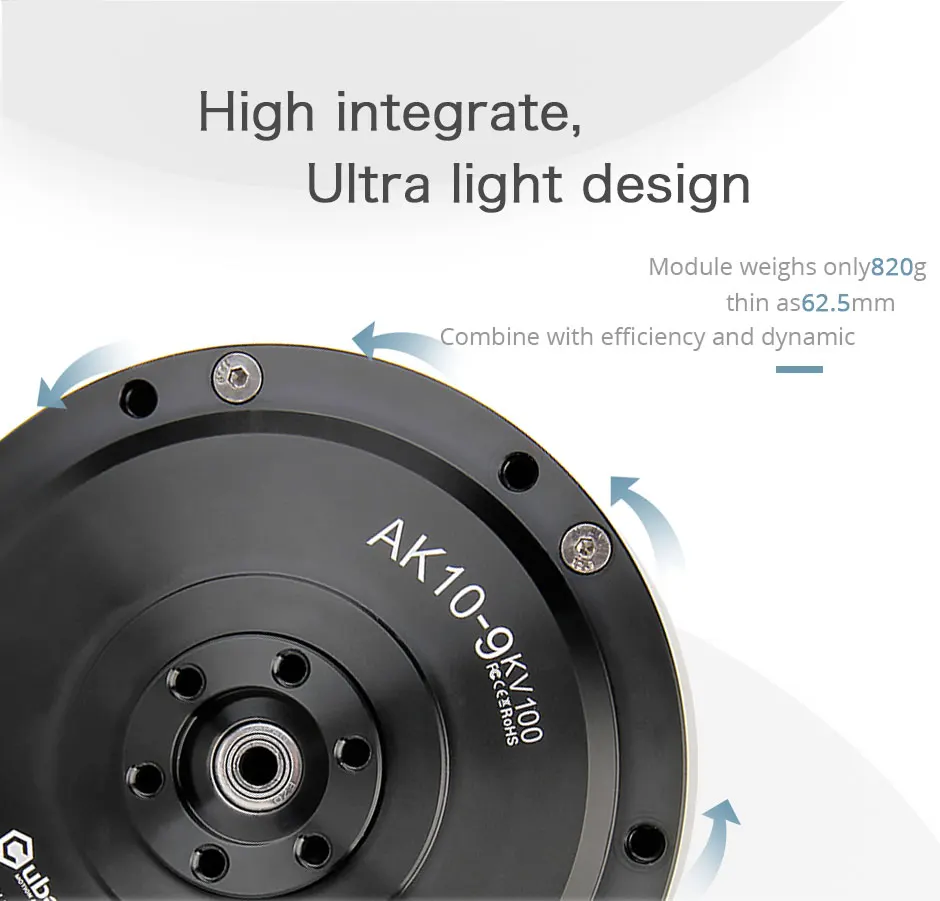

CubeMars AK10-9 Integration

CubeMars AK10-9 Low Noise Operation

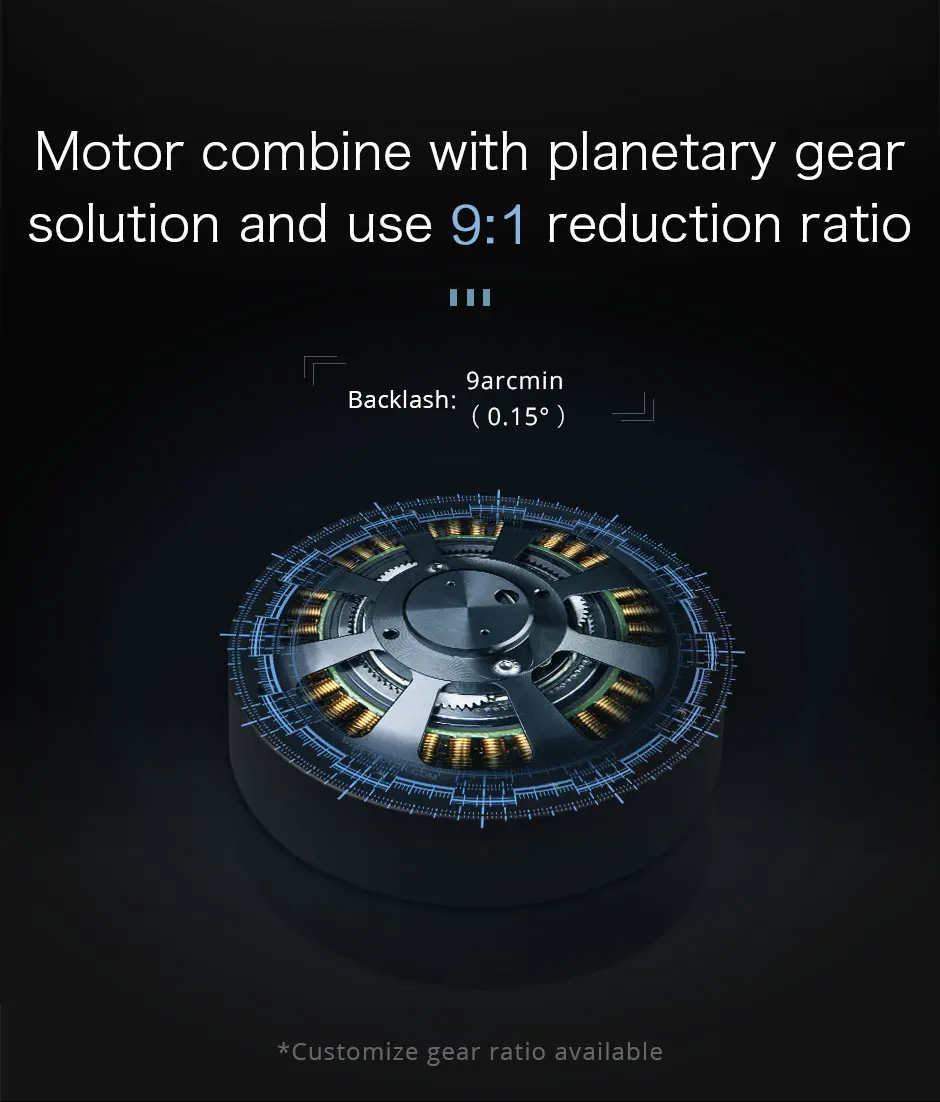

CubeMars AK10-9 Planetary Gear Solution

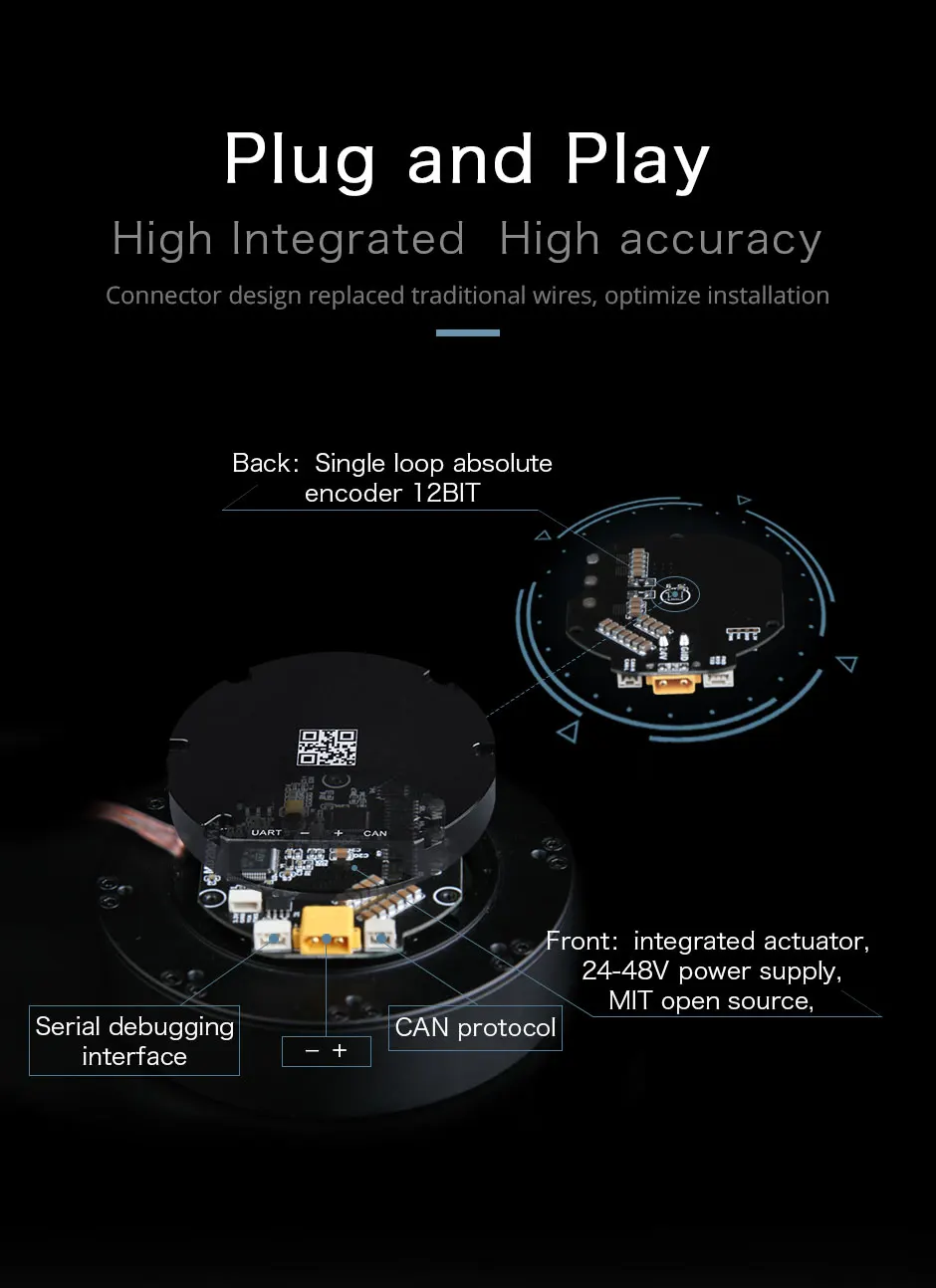

CubeMars AK10-9 High Integration

CubeMars AK10-9 Applications

CubeMars AK10-9 Product Drawing



MORE ABOUT THIS MOTOR.

We get inspiration from the robot dog motor , Always ,we want to develop a small motor with gears.It needs to be different from our regular products .The gears doesn't need to be attached the motor ourside ,So we find that the space in motor stator might be a good choice to set up the gears ,we try that and it worked !

Also,more surprised the whole acuator only 400g of weight !

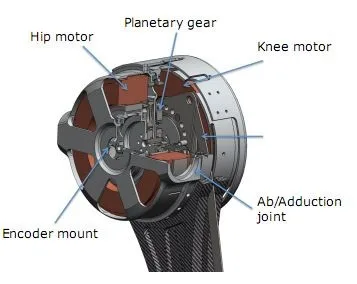

CubeMars AK10-9 Render

CubeMars AK10-9 Information

CubeMars AK10-9 Information 2

CubeMars AK10-9 Leg Render

CubeMars AK10-9 Lego 360 Render



CubeMars Company Profile

CubeMars Company Profile

Packing & Delivery

Shipping Methods



FAQ

Q1: Are you manufacturer ?

A: Yes. We are the headoffice & manufacturer of CubeMars brand .

We can do both OEM and ODM. We have our own R&D team.

Q2: Can I get a free sample?

A: Generally we don't provide free sample, but we can return sample cost when you place format orders .

Q3: What are the shipping methods ?

A: DHL express is default delivery . Usually it will take 3-5 days to arrive your place . We accept UPS , FedEx and others you required .

Q4: How is your warranty service?

A: We do strict test before shipping and guarantee for 365 days. We pay high attention to after-sales service.

Q5: What're the payment methods?

A: We accept Alibaba trade assurance , Paypal , Bank transfer , Credit card .
