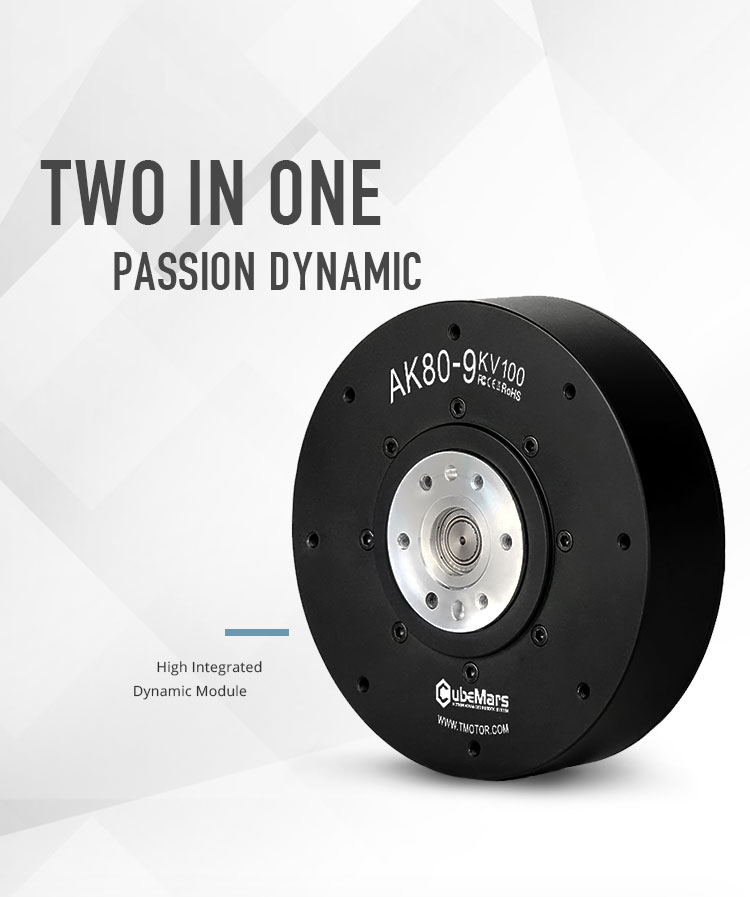

CubeMars Actuator AK80-9 high torque Motor with gearbox and integrated Driver
Model: AK80-9 KV100
CubeMars DC Motor with planetary gearbox and driver inside
- Picture Example:
-
- Lead Time:
-
Quantity(Sets) 1 - 10 >10 Est. Time(days) 7 To be negotiated
Product Description
NOTE:
We are manufacturer. All our motors can be customized as you need in size speed logo output power torque voltage etc.
Samples totally same as pics are in stock.
FOR MORE DETAILS, CONTACT ME FREELY.
MORE ABOUT THE MOTOR :
We get inspiration from the robot dog motor. Always,we want to develop a small motor with gears. It needs to be different from our regular products .

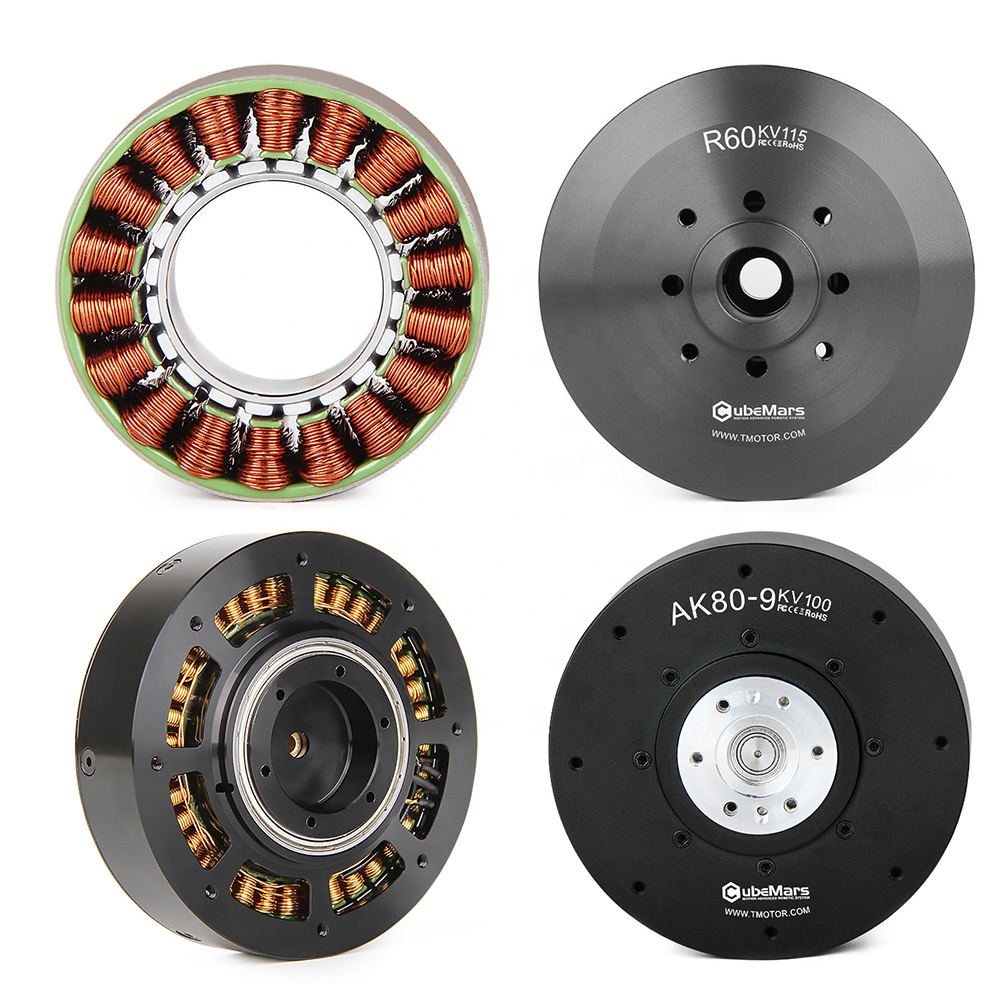

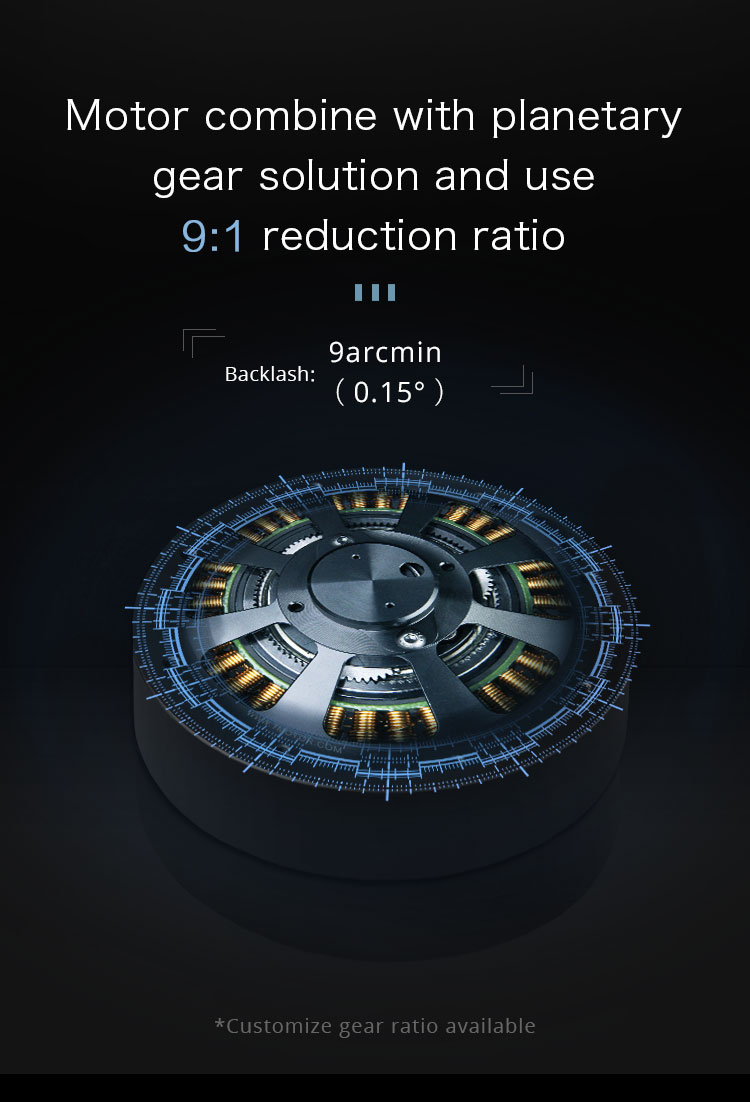

The gears doesn't need to be attached the motor ourside, So we find that the space in motor stator might be a good choice to set up the gears, we try that and it worked.

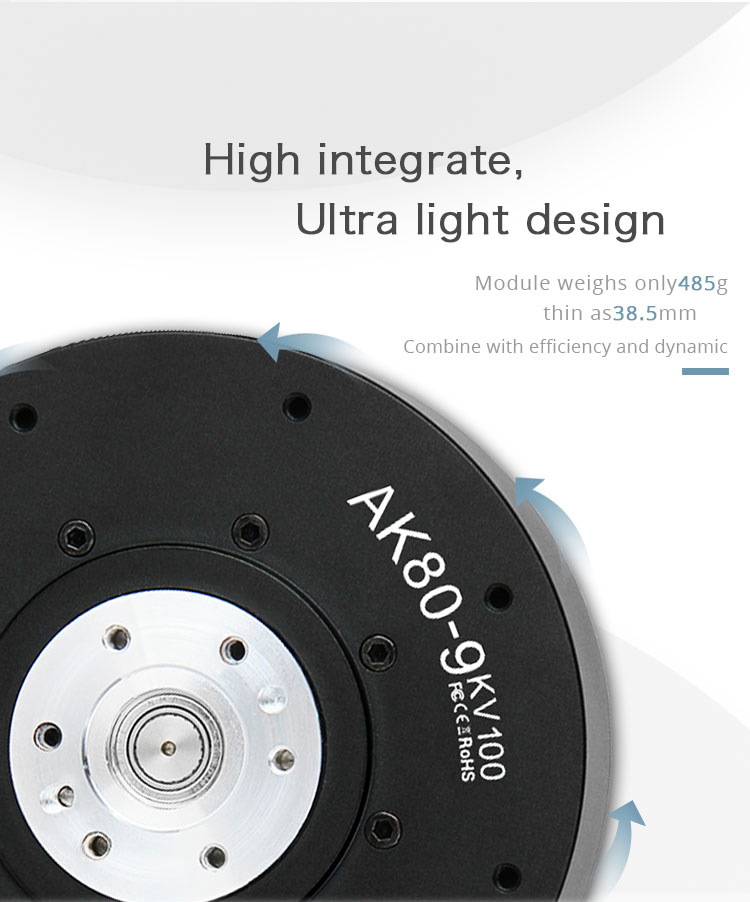

Also, more surprised the whole acuator only 400g of weight !
More Model in AK series
|
Model No. |
AK80-6 |
AK80-9 |
AK70-10 |
AK10-9 |
AK80-80 |
|
Size (MM) |
98*48 |
98*45.2 |
89*50.2 |
98*65.2 |
98*61.9 |
|
Weight (g) |
465 |
485 |
521 |
820 |
790 |
|
KV(RPM/V) |
100 |
100 |
100 |
100 |
100 |
|
Voltage (V) |
24 |
24 |
48 |
48 |
48 |
|
Rated Torque(NM) |
6 |
9 |
8.3 |
18 |
48 |
|
Peak Torque(NM) |
12 |
18 |
24.8 |
54 |
144 |
|
Rated Current(A) |
12 |
12 |
8.8 |
22 |
13 |
|
Peak Current(A) |
24 |
24 |
26.1 |
68 |
40 |
|
Speed(RPM) |
365 |
245 |
400 |
445 |
57 |
|
Km (Nm/sqr w) |
0.2206 |
0.2206 |
0.19 |
0.3 |
0.23 |
|
Kt(Nm/A) |
0.091 |
0.091 |
0.095 |
0.095 |
0.095 |
|
Ke(V/rpm) |
0.00952 |
0.00952 |
0.01 |
0.01 |
0.01 |
|
Application |
Biped Quadruped Collaborative Service Training Robot, Robot Arm Joint, Medical Equipment, Mit Cheetah Robot Dog Robot and high precision low speed drive Module equipments. |
||||
Our Company
We have our own factory, QC and R&D team. OEM and ODM Motors are available.

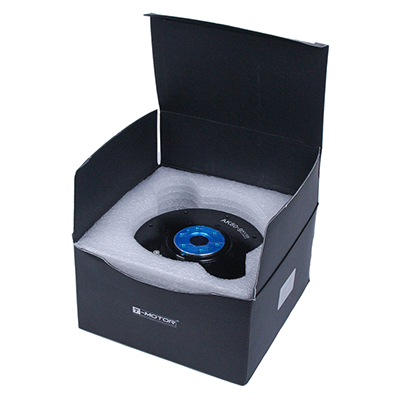

Packing & Delivery
FAQ
Q1: Do you have manufacturer ?
A: We are the headoffice & manufacturer of T-MOTOR brand .
We can do both OEM and ODM. We have our own R&D team.
Q2: Can I get a free sample?
A: Generally we don't provide free sample, but we can return sample cost when you place format orders .
Q3: What shipping method ?
A: DHL express is default delivery . Usually it will take 3-5 days to arrive your place . We accept UPS , FedEx and others you required .
Q4: How is your warranty service?
A: We do strict test before shipping and guarantee for 365 days. We pay high attention to after-sales service.
Q5: What's of payments method?
A: We accept Alibaba trade assurance , Paypal , Bank transfer , Credit card .

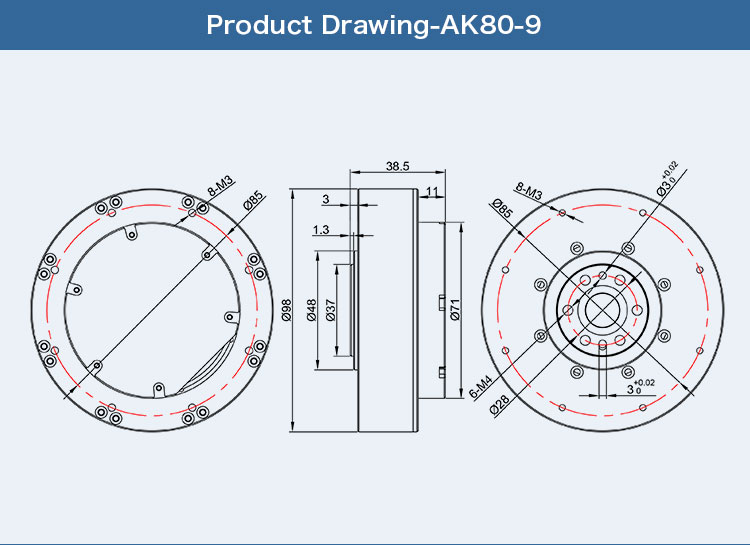

More drawings and details, pls feel free to contact us roght now!
We are on-line for you 24 hours.
