About

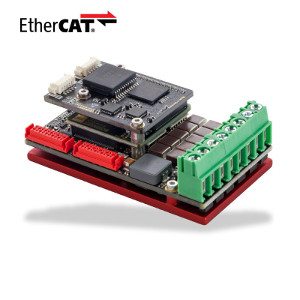

Featuring Com EtherCAT, Core C2X and Drive 1000, the SOMANET Servo Node 1000 EtherCAT controls and drives one permanent magnet synchronous motor (PMSM, BLDC) up to 1040 Watt (33 A rms) nominal power.
SOMANET Servo Nodes: Meet the most compact and flexible embedded EtherCAT Servo Drives.
Technology
- Highly efficient model-predictive, field-oriented motor control software with advanced compensation of unwanted physical effects in drive (e.g. cogging)
- EtherCAT or Ethernet communication (Profinet, SERCOS III, CAN, RS-485, WiFi and Bluetooth available on demand) through SOMANET Com modules
- DS402 position, speed and torque/current control loops
- High-res, high-speed ADCs for precise current and voltage measurements
- Advanced protection circuitry
- Control feedback through encoders and additional sensors via Hall, QEI/ABI/ABZ (RS-422), BiSS-C (RS-422), SSI, SPI, I2C and analog interfaces
Applications
Applications for the SOMANET EtherCAT Drive include for example:
- Traditional Robotic Arms
- Collaborative Robotic Arms
- Automated Guided Vehicles
- Service Robots
- Conveyor Belts
- Special Machinery
