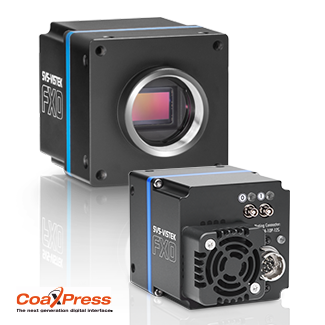

FXO CXP series

Model: see below

SVS-VISTEK GmbH

Request a Quote

The FXO series

Model	MP	Resolution	fps
fxo537CCX12-2C	5	2448 x 2048	259
fxo547CCX	5	2448 x 2048	124
fxo546CCX	8	2832 x 2840	88
fxo535CCX12-2C	12.3	4096 x 3000	186
fxo545CCX	12.3	4096 x 3000	61
fxo532CCX12-2C	16.1	5320 x 3032	150
fxo542CCX	16.1	5320 x 3032	45.6
fxo531CCX12-2C	20.2	4480 x 4504	110
fxo541CCX	20.2	4480 x 4504	35.7
fxo530CCX12-2C	24.4	5312 x 4600	100
fxo540CCX	24.4	5312 x 4600	30.4
