Allied Vision Gilching GmbH Product
SVS-Vistek is a leading supplier of reliable and affordable high-resolution digital cameras (from VGA to 151 MP) as well as high-speed cameras and customized vision systems for machine vision, based in Gilching, Germany.
Product filed under:
Cameras & Smart Cameras, CoaXPress, and Frame Grabber Based Cameras Cameras & Smart Cameras, CoaXPress, and Frame Grabber Based Cameras

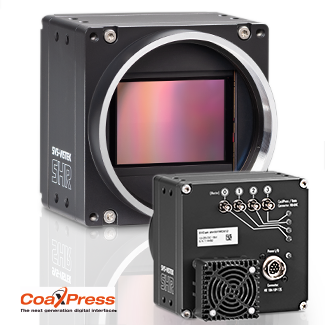

The SHR series enables ultra-sharp images in excellent image quality
Image sensors with high resolutions are very complex in terms of technology. Sensors with rolling shutters are technically much simpler than sensors with global shutters. Rolling shutter sensors have fewer transistors and are easier to manufacture, especially in terms of noise. For this reason, rolling shutter still dominates the market for high-resolution sensors. However, global shutter is the gold standard for image sensors because it guarantees that all pixels are exposed at exactly the same time, thus eliminating distortions caused by object movement. The shr661 offers 127.6 megapixel resolution with global shutter top technology and a wide dynamic range due to the 3.45µm pixel.
| Model | MP | Resolution | fps |
| shr461CCX | 101.8 | 11648 x 8742 | 8.7 |
| shr661CCX12 | 127.6 | 13392 x 9528 | 20 |
| shr411CCX | 151 | 14192 x 10640 | 6.1 |
Other Products from Allied Vision Gilching GmbH
SHR GigE series
The high resolution SHR series offers outstanding image quality. This is made possible by the excellent physical characteristics of large pixels in large format sensors.
