Stöger Automation LP Product
Member Since 2023
Stoeger automation, screwdriving
Product filed under:
End of Arm Tooling and Turnkey Systems & Components and Specialized Tooling End of Arm Tooling and Turnkey Systems & Components and Specialized Tooling

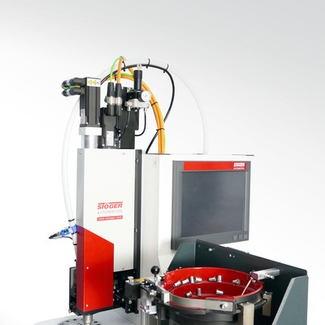

Process reliable, powerful and economical – the compact blind rivet nut setting system including force-displacement measurement assembles blind rivet nuts and blind rivet studs fully automatically in cycle times of 5-9 seconds. The bulk material is separated and fed to the setting unit in the correct position via the feed system with flexible feed hose.
The process can be monitored 100 %. Whether in transfer systems, turntable systems, on positioning systems or robot systems, the BMS can be used in almost unlimited ways. The tool-free changing of the tension screw in 10 seconds also guarantees minimum downtimes and maximum use.
+ Checking of the functionality of the thread during spindling on and off, defectively detected rivets are automatically ejected and replaced
+ STÖGER positioning compensation ensures exact positioning in the workpiece, patented 6-edge finding method + 100 % success control thanks to force sensor
+ Commercially available standard screw as drawing tool, automatic breakage detection, tool-free changing of the drawing tool possible in 10 seconds
