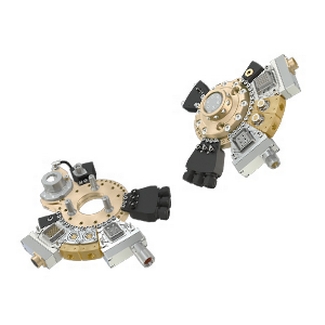

MPS 260 Modular
Model: Stäubli Robotic Tool Changer - Medium Payload
For payloads up to 350kg. Robotic tool changing systems from the MPS product line are impressive due to their multifunctional technology applications and cover the entire bandwidth of customer-specific application
Robotic tool changing systems from the MPS product line are impressive due to their multifunctional technology applications and cover the entire bandwidth of customer-specific applications. The MPS 260 and MPS 260S (for higher moment applications), are extremely flexible solutions for medium payloads.
These automatic, very compact tool changers offer numerous module variations for various components within media, data and energy transmission, such as pneumatics, vacuum and cooling, signal and power supply and primary current.
With the MPS MODULAR solution concept, we offer the unique opportunity for self-configuration of the robotic tool changing system to meet the specific needs of individual applications. With the full potential of our modular toolbox principle at your command, choose from our broad portfolio of coupling technology for media and power transmission, and determine where to position the transmission module within the base unit.
BENEFITS
- A simple, transparent code system guides you through the ordering process.
- You receive the finished assembled tool changing systems, already equipped to suit your needs.
- The positioning of the transmission module enables simple connection of the cable package.
You can reposition the transmission module at any time and, if necessary, make modifications for new production technologies.
|
|
MPS 260 |
MPS 260S (for higher moment) |
|---|---|---|
|
Max. payload |
350 kg |
350 kg |
|
Max. static moment |
2,000 Nm |
2,500 Nm |
|
Max. dynamic moment |
7,000 Nm |
8,750 Nm |
|
Pneumatic ball locking |
0.5 - 1.0 Mpa |
0.5 - 1.0 Mpa |
|
Repeatability |
0.01 mm |
0.01 mm |
|
Height (coupled) |
67 mm |
67 mm |
|
Pitch circle diameter (PCD) robot adapter flange |
ISO 9409-1-125-11-M10 |
ISO 9409-1-125-11-M10 |
|
Module places |
7 to 14 |
7 to 14 |
Other Products from Staubli Tool Changers
MPS 130 Modular
For payloads up to 100kg. Robotic tool changing systems from the MPS product line are impressive due to their multifunctional technology applications and cover the entire bandwidth of customer-specific application

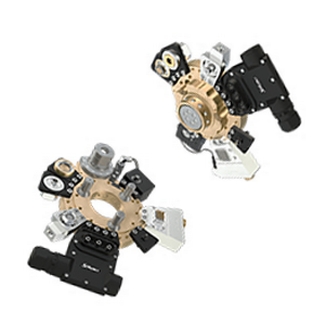

MPS 631 Customized
