Sony Visual Imaging Solutions Product
Sony manufactures and markets a full line of professional and industrial cameras, including GigE, Camera Link®, USB3 Vision B/W, color, high-speed progressive scan, network, block and video conferencing cameras. From machine vision, factory automation and inspection, to security and process control, Sony's emphasis is on giving you value, choice and flexibility, regardless of your application.
Product filed under:
Cameras & Smart Cameras Cameras & Smart Cameras

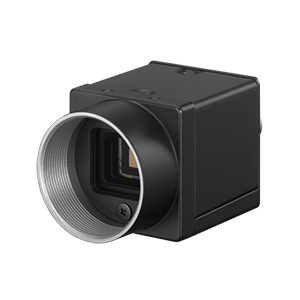

XCU-CG160 USB Global Shutter SXGA B/W Camera
Model: XCU-CG160
The XCU-CG160 (black & white) combines the best of Sony technology in a convenient form factor which is optimised for use within both the Industrial Vision and non-manufacturing vision markets. The XCU-CG160 draws upon Sony's market leading Global Shutter CMOS sensor technology, combining the 1.6MP sensor with SXGA resolution with a rich heritage of complete camera technology, bringing the best combination of performance and quality from a brand you can trust.
The XCU-CG160 incorporates the latest Pregius GSCMOS sensor providing the best combination of resolution and frameframe tailored for use in production and inspection environments where USB3.0 Vision is the prefered architecture.
The XCU-CG160 provides a simple migration path from CCD to GSCMOS without necessarily having to upgrade or change architecture. The IMX273 shares comparable sensor and pixel size characteristics with the well regarded Sony ICX445, but offers huge technological improvements in sensitivity, dynamic range, noise reduction and frame rate capability.
The XCU-CG160 has a resolution of 1456 (H) x 1088 (V) (effective pixels) with a frame rate of over 100fps and supports USB3.0 Vision 1.0.1 interface.
