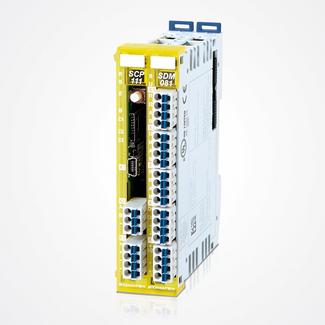

Safety System S-DIAS

Sigmatek U.S. Automation

Request a Quote

The S-DIAS Safety systems can be seamlessly integrated into the SIGMATEK system architecture. Safe and function-oriented components can be combined with each other as neede

S-DIAS Safety is a part of the modular S-DIAS control and I/O system (IP20). The Safety solution for the DIN rail consists of a Safety controller (SCP) and safe I/O modules. The transmission of Safety-relevant data is based on the Black Channel principle – by cable or wireless.

The TÜV-certified Safety system can also be used as a stand-alone solution. Existing machines and equipment can therefore be gradually equipped with Safety functions.

Modern: designed for the highest Safety requirements – SIL 3/PL e, Cat.4
Compact: module dimensions of only 12.5 x 104 x 72 mm (W x H x D) - Safety PLC and I/Os
Flexible: Hot-Swap feature
Efficient: individual adaptation to requirements through modular configuration
Easy: minimal wiring and comfortable engineering with LASAL SAFETYDesigner

Safety Hot-Swap: Change machine network during active operation With the Hot-Swap feature, you have even more flexibility when implementing your Safety concept. Machine components with their own S-DIAS Safety CPUs can be flexibly integrated into the system, logged out and logged back into the machine network at a different location – and that during runtime.
