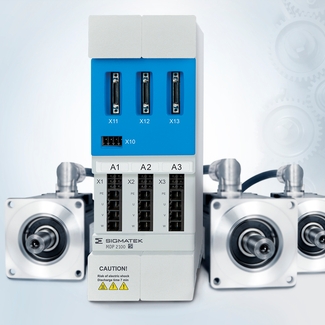

The DIAS Drive MDD 2000 series is designed for dynamic multi-axis applications.
SIGMATEK.jpg)
The new DIAS Drive generation MDD 2000 combines high performance and flexibility to control servo motors in a highly compact design.
- Highest power density with up to three axes, a supply, power filter, brake resistor, DC-Link circuit and an overload factor of up to 300 percent
- Modular use as standalone or in combination with any number of axis modules enables a precisely fitting drive concept
- Many Safety functions: Safe Torque Off (STO), Safe Stop 1 (SS1), Safe Operating Stop (SOS), Safe Brake Control (SBC) and Safely-Limited Speed (SLS) - all according to SIL 3, PL e, Cat. 4
- Shortened installation thanks to clever connection mechanism in fast, tool-free stacking technology
- In addition to digital motor feedback interface Hiperface DSL, numerous encoder variants are supported
Dimensions:
DIAS Drive size 1: 75 x 240 x 219 mm (W x H x D)
DIAS Drive size 2: 150 x 240 x 219 mm (W x H x D)
DIAS Drive size 3: 225 x 240 x 219 mm (W x H x D)
Other Products from Sigmatek U.S. Automation
SIGMATEK.jpg)
Remote Access
The SIGMATEK “Remote Access Platform” (RAP) provides you with a modern, webbased cloud platform for secure remote access.
SIGMATEK.jpg)

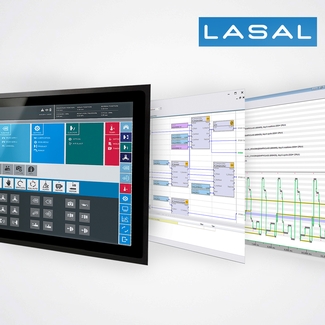

Engineering Tool LASAL
