A compact yet powerful HD MWIR camera designed with the integrator in mind. A small footprint that enables easy integration
Sierra-Olympia has built proven 6 micron technology from DRS Leonardo into a complete camera system to leverage their HD (1280×960) focal plane with a proprietary long-life cooler for higher acuity and FOV with lower total cost of ownership. On-board video encoding and advanced image processing makes this camera perfect for integration into high-performance applications in the air and on the ground.
- Extended Cooler life for longer Cost Effective Operation
- 1280 x 960 HD Format
- 10X Long Range Optical Zoom
- Detect, Recognize, Identify (DRI) Options
- Engineered for Low-SWaP
Detector
| Detector Type | Mercury Cadmium Telluride (MCT) |
|---|---|
| Array Format | 1280 x 960 |
| Pixel Pitch | 6 micron |
| Spectral Response | MWIR |
| Frame rate | 30 Hz default 60 Hz capable |
| Bit Depth | 14-bit |
| NETD | 30 mK Typical |
System
| Digital Video Output | HDMI, HDSDI (optional), CameraLink |
|---|---|
| IP Video Output | Ethernet (H.264, H.265) |
| NUC | 2-point NUC, 1-point with shutter, Bad Pixel Replacement |
| Digital Zoom/Pan | 1X to 16X |
Environmental
| Input Voltage | 12 VDC |
|---|---|
| Power Dissipation | < 16W steady state (estimated) |
| Operating Temperature | -20°C to +40°C (estimated) |
| Mounting | 1/4-20 Tripod Mount, and M3 tapped holes |

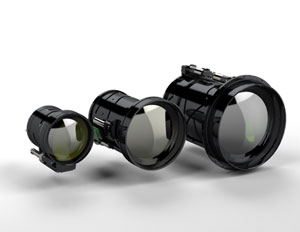

Lens Models
| EFL | 18mm to 180mm |
|---|---|
| F# | 2.6 |
| FOV | 25º-2.4º |
| Focus | One-touch autofocus |
| Optical Zoom | 10X |
| Environmental Coating | Athermalized, high-performance AR coating |
| Size (L x W x H) | 195x106x143mm (estimated) |
| Weight | 1390g (estimated) |
