High definition in tough environments. This HD field-ready camera is enclosed in a IP54 ingress rated case

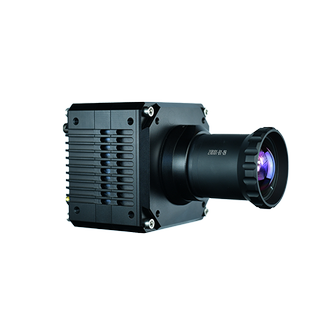

The Vayu HD-I was built for high definition infrared imaging in difficult environments. This field-ready camera is enclosed in a IP54 ingress protected case with sealed and locking connectors. Rigid internal design is meant to withstand vibration environments under a wide operating temperature range. The rugged encasement provides several mounting arrangements, making integration faster with minimal SWaP tradeoff for weight critical missions
| Detector Type | Uncooled VOx Microbolometer |
|---|---|
| Array Format | 1920 x 1200 |
| Pixel Pitch | 12 Micron |
| Spectral Response | LWIR |
| Frame Rate | 60 Hz |
| Bit Depth | 16-bit |
| NETD | 50mK |
| Digital Video Output | SDI (1080p), USB3.0 UVC (RAW 16-bit) |
|---|---|
| IP Video Output | Ethernet (H.264, H.265) |
| NUC | Scene or Mechanical shutter |
| Image Enhancement | Linear Histogram AGC CLAHE LAP Sharpen De-noise Electronic image stabilization |
| Color Palette Options | User color palettes/LUT |
| Digital Zoom/Pan | 1X to 16X |
| Symbology | User Defined |
| Onboard Storage | 64 GB |
| Camera control/Command Interfaces/System Control | Ethernet Serial (RS-422) |
| Other Electrical Interfaces | Aux serial in/out |
| Input Voltage | 11 to 14 VDC |
| Input Voltage | 11 - 14 VDC |
|---|---|
| Power Dissipation | 12W typical at room temperature 15W maximum |
| Operating Temperature | -15°C to +55°C |
| Sealed/Rating | IP54 |
| Certifications | Operational vibration environment (limits TBD) |
| Standards / Compliance | FCC Part 15 Subpart B Class A |
| 25mm Lens | 50mm Lens | 87mm Lens | |
|---|---|---|---|
| F# | 1.2 | 1.2 | 1.2 |
| HFOV by VFOV | 49.5° x 32.1° | 25.9° x 16.4° | 15.1° x 9.46° |
| Focus | Thread Focus | Thread Focus | Thread Focus |
| Environmental (coating) | Athermalized, high-performance AR coating | Athermalized, high-performance AR coating | Athermalized, high-performance AR coating |
| Mounting | 1/4-20 M4 tapped mounting holes | 1/4-20 M4 tapped mounting holes | 1/4-20 M4 tapped mounting holes |
| Size (L x W x H) | 147mm x 85mm x 85mm | 138mm x 85mm x 85mm | 167mm x 89mm x 89mm |
| Weight | 860g (1.9lbs) | 881g (1.9 lbs) | 1,174g (2.6lbs) |
Other Products from Sierra-Olympia Technologies, Inc.

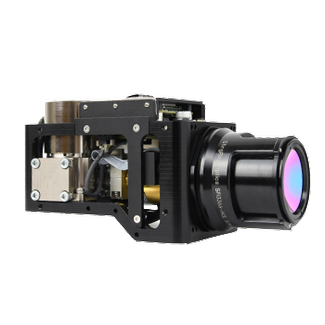

Ventus OGI
