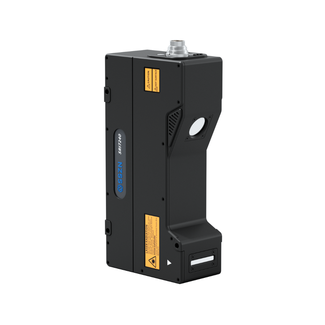

SRI8120 Laser Profiler for High-Precision 3D Inspection
Model: SRI8120
Explore the SRI8120 3D laser profiler with 67 kHz scanning speed, 68 mm Z-axis field of view, and ±0.01% linearity.
-1.png)
The SRI8120 Laser Profiler is a highly integrated 3D camera designed for high-precision industrial inspection. With a Z-axis field of view of 68 mm at a 118 mm working distance, it delivers reliable depth accuracy across medium-sized inspection areas.
Its X-axis line width of 84 mm ensures broad coverage, while the ultra-fast scanning speed of up to 67 kHz supports demanding high-throughput applications. These features make the SRI8120 an excellent choice for industries requiring both precision and speed in their quality control processes.
Key Specifications
- X-axis line width: 73–100 mm
- Scanning speed: 2,300–67,000 Hz (67 kHz max)
- Z-axis linearity: ±0.01% of full scale (F.S.)
- Z-axis field of view: 68 mm @ 118 mm working distance
- Light source wavelength: 405 nm
- Laser safety class: 2M
- X-axis profile points: 3,200
The SRI8120 combines micron-level precision with high-speed scanning, making it an ideal solution for quality inspection in electronics, semiconductors, and precision manufacturing.
For more details, click here SRI8120
Contact Us:
Email: [email protected]
Website: www.sincevision.com
