SRI7700 3D Laser Profiler – Wide Field of View, High Speed, and Precision Built for Modern Manufacturing

Model: SRI7700

Shenzhen SinceVision Technology Co. Ltd.

Discover the SRI7700 3D Laser Profiler with a 315 mm Z-FOV, 435 mm X-axis width, 3200 points

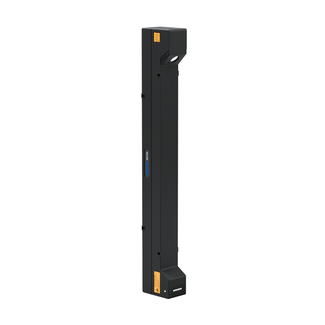

Image of SRI7700 3D Laser Profiler – Wide Field of View, High Speed, and Precision Built for Modern Manufacturing

The SRI7700 delivers a balanced combination of wide coverage, fast scanning, and precise height measurement. Designed for industrial environments that require stable 3D inspection across large surfaces, this profiler supports advanced inline metrology with consistent accuracy and reliability.

Its Z-axis field of view reaches 315 mm at a 700 mm working distance, while the X-axis line width spans 357–460 mm, making it suitable for applications in battery production, automotive parts inspection, electronics assembly, and material processing.

Key Features:

  • X-axis profile points: 3200 for high-density surface reconstruction
  • Z-axis linearity: ±0.05% of Full Scale (F.S.) for stable, repeatable height accuracy
  • Scanning speed: 1,500–20,000 Hz, meeting the needs of both precision and high-throughput lines
  • Light source wavelength: 450 nm blue laser for optimal material contrast
  • Laser safety class: 3R, compliant with industrial safety requirements
  • Wide X-axis line width: 357–460 mm, enabling broad coverage in a single pass

The SRI7700 elevates 3D inspection by combining speed, resolution, and durability. Whether deployed on welding quality checks, dimensional measurements, deformation analysis, or assembly verification, it delivers dependable data that supports smarter and more automated manufacturing workflows.

For more details, visit SinceVision



Contact Us

Email: [email protected]
Website: www.sincevision.com

SRI Series 3D Laser Profiler is cutting-edge sensor that combines precision, versatility, and durability for unparalleled performance. Key Features: 1. Integrated PCBA Design: Streamlined for easy integration into your systems. 2. Exceptional Accuracy: Linearity of 0.02% and temperature characteristic of 0.01% ensure precise measurements. 3. Versatility: Multiple light source options to overcome laser interference and measure a wide range of materials.
