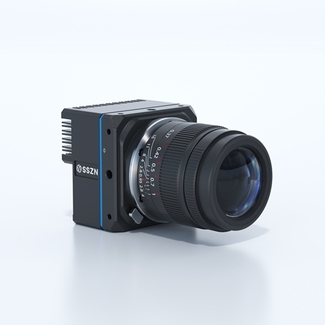

SHS-202 High-Speed Camera – Ultra-Fast CXP12 Interface with Real-Time 4GB/s Transmission
Model: SHS-202
SinceVision SHS-202 is a high-performance high-speed camera featuring a 1920x1080 resolution and 2250FPS. Equipped with a CXP12 interface for 4GB/s
Discover the SHS-202 high-speed camera featuring a 1920×1080 resolution, 2250FPS full-frame capture, 10µm pixel size, and a massive customizable storage capacity up to 30TB.
The SHS-202 is the newest powerhouse in SinceVision’s high-speed camera family. Designed for high-velocity environments, it utilizes an advanced CXP12 data interface to achieve real-time writing speeds exceeding 4GB/s. With its compact, sturdy body and superior heat dissipation, the SHS-202 delivers lossless data and high-quality imaging, making it the ideal choice for industrial monitoring, destructive testing, and high-speed motion analysis.
Key Features:
- Ultra-Fast Performance: 2250 FPS at full 1920 x 1080 resolution
- Advanced Interface: CXP12 connectivity for >4GB/s real-time transmission
- High Sensitivity: 30,000 (Monochrome) / 10,000 (Color) for low-light capture
- Precision Timing: Minimum exposure time of 100ns and PIV cross-frame interval ≥150ns
- Massive Storage: Customizable internal memory options from 2TB up to 30TB
- Versatile Integration: Multiple trigger modes (Manual/IO/Image) and optional E, C, F, or EF lens mounts
More information:
Read the full product details on SHS-202: https://www.sincevision.com/productinfo119.html
Email: [email protected]
Website: www.sincevision.com
