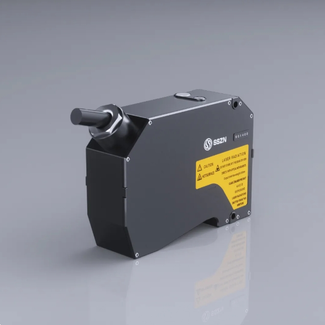

SGI400 Laser Displacement Sensor: Fastest Sampling Frequency 88kHz
Model: SGI400
The SinceVision SGI400 laser displacement sensor offers unmatched speed (88kHz) and precision (2µm) in an ultra-integrated design. No external controller needed. Ideal for high-speed industrial automation.
The SinceVision SGI400 laser displacement sensor delivers unmatched speed and precision with an industry-leading 88kHz sampling frequency. Its ultra-integrated design eliminates the need for an external controller, simplifying setup and reducing system costs. This high-performance sensor is ideal for applications requiring fast and accurate non-contact measurement.
Key Features:
- Reference Distance (CD): 400mm
- Repetition Accuracy: 2μm
- Sampling Frequency: Up to 88kHz
- Linearity: ±0.05% F.S.
- Ultra-High-Speed Sampling: 88kHz for real-time, high-precision measurement.
- Ultra-Integrated Design: No external controller required, simplifying integration.
- High Precision: 2μm repetition accuracy and ±0.05% F.S. linearity.
For more details, click here SinceVision
Contact Us:
Email: [email protected]
Website: www.sincevision.com
Other Products from Shenzhen SinceVision Technology Co. Ltd.
SR9160 3D Laser Profiler | Industry's Highest 6400 X-Axis Contour Points
Discover the SR9160 3D Laser Profiler with 6400 X-axis contour points, 1.5µm repetition accuracy, and IP67 protection. Ideal for high-speed, high-precision detection in demanding environments.

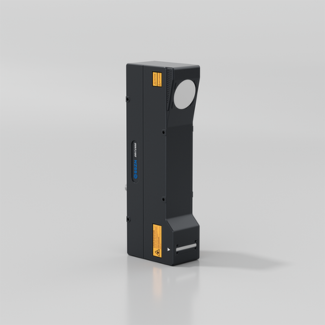

SRI71600 3D Laser Profiler – Largest Field of View
Discover the SRI71600 3D Laser Profiler with the largest field of view, 3200 X-axis contour points, and high-speed scanning up to 20,000 Hz. Upgrade your manufacturing processes with precision and efficiency.
