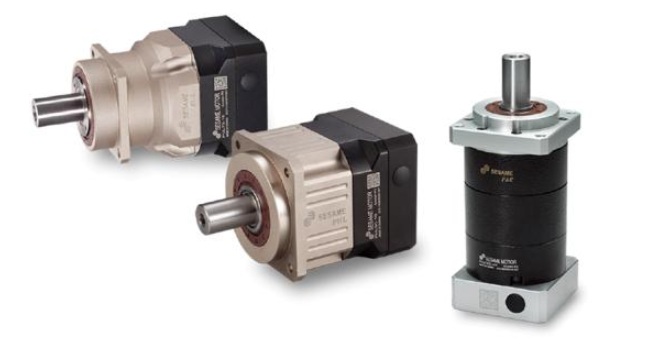

Planetary Gearbox - Inline Output Shaft

SESAME inline output shaft planetary gearboxes are compact, high-efficiency gear transmission systems designed to deliver high torque and precise motion control in demanding applications. These types of gearbox utilizes a planetary gear arrangement—comprising a central sun gear, surrounding planet gears, a planet carrier, and an outer ring gear—to achieve a high power density in a small footprint. In this configuration, the output shaft is typically integrated with the planet carrier, enabling stable and efficient torque transfer to the driven equipment.

Key Features

• High Torque Density
  Efficient torque multiplication with minimal size, ideal for space-constrained applications.
• Compact & Lightweight Designa
  The coaxial layout and load-sharing among planet gears allow for a smaller and lighter gearbox compared to traditional systems.
• Exceptional Efficiency
  Offers mechanical efficiencies typically above 95%, reducing energy loss during power transmission.
• High Load Capacity
  Distributed load among multiple planet gears ensures excellent shock resistance and durability under heavy or fluctuating loads.
• Precise Motion Control
  Low backlash designs available, making it suitable for robotics, CNC machines, and other precision-driven equipment.
• Flexible Mounting Options
  Designed to easily integrate with various motor types and configurations.
• Robust Construction
  Engineered with hardened steel gears, high-quality bearings and synthetic lubricant for long service life and reliability.
• Versatile Gear Ratios
  Supports a wide range of gear ratios, enabling tailored performance for different speed and torque requirements.

Online servo motor and planetary gearbox configuration tool, download gearbox CAD or STEP drawings. TRY IT NOW!
