Sesame Motor Corp. Product

AGV & AMR Gearbox

Model: PGV

Sesame Motor Corp.

SESAME AGV & AMR gearboxes deliver reliable torque and precision, optimized for automated guided vehicles and autonomous mobile robots

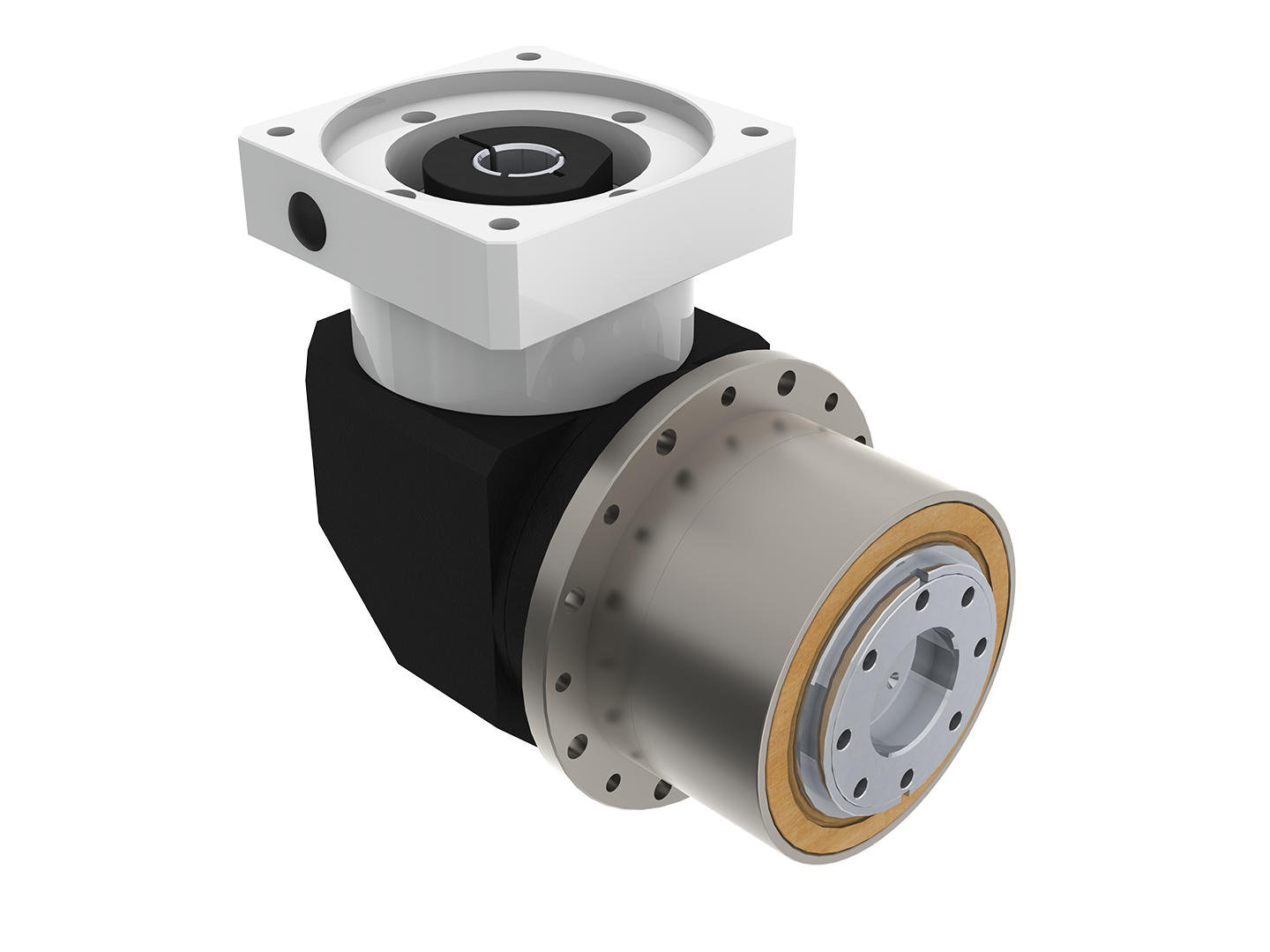

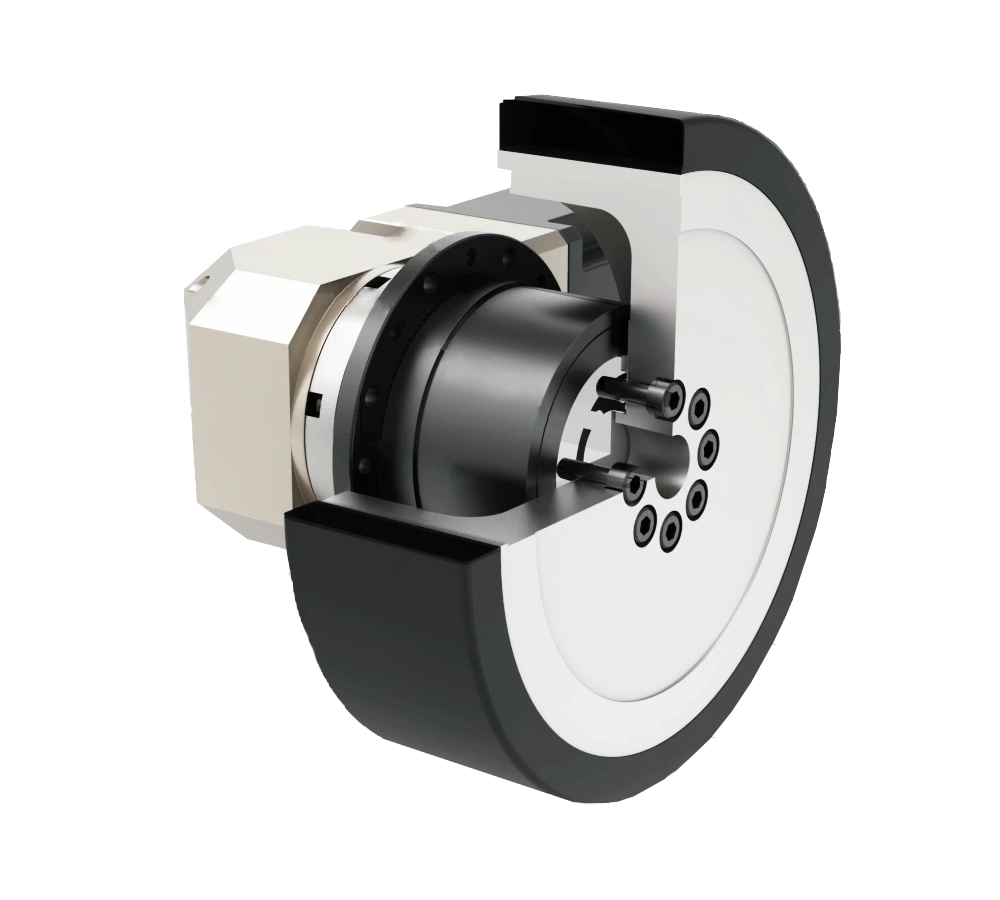

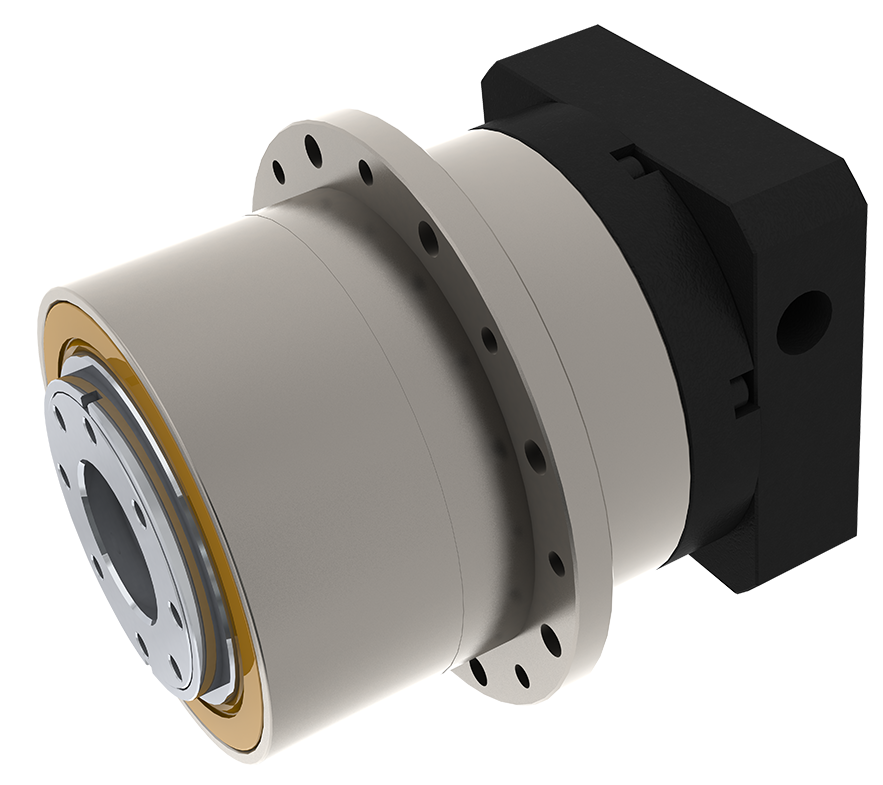

Image of AGV & AMR Gearbox

The PGV series planetary gearboxes are compact design with high torque density, high precision, high radial load and high rigidity allow AGVs and AMRs to move quietly and smoothly in various occasions. Ratios from 3:1 up to 100:1. Lifetime lubricant and maintenance-free features provide excellent reliability in continuous operation. Customized solutions are available such as low temperature environment. The PGV planetary gearbox is a cost-effective choice for AGVs and AMRs manufacturers that want to remain competitive in a fast-changing market.

Basic Specification

  • Frame Size (mm): 60/90/115
  • Nominal Output Torque (Nm): 32-280
  • Ratio: 3-100:1
  • Backlash (arcmin): 7-12 (one stage), 9-15 (two stages)
  • Torsional Rigidity (Nm/arcmin): 7-55
  • Max. Radial Load (N): 1510-7100
