SCHUNK is a technology pioneer in toolholding, workholding, gripping and automation technology. Driving productivity gains for its customers and partners in the industry with a portfolio of components, engineering expertise, and machines - for 80 years.
Product filed under:
End of Arm Tooling and Grippers End of Arm Tooling and Grippers

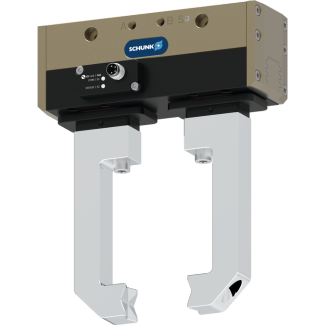

The PGL-plus-P gripper brings trusted pneumatic gripping technology together with the latest gripping technology developments. Multi-tooth guidance and long stroke offers flexibility and performance. Available GripGuard technology offers certified grip force maintenance.
By applying pressure to the opposing drive pistons, the multi-tooth guided base jaws are directly driven via a drive type fastening. The jaw stroke is synchronized by means of rack-and-pinion kinematics. This ensures powerful and centric opening and closing of the gripper.
Advantages – Your benefits
- Secure, certified gripping force maintenance, GripGuard
Holds the gripped workpiece safely and also ensures a permanent gripping force of min. 80% in case of pressure drop. It also ensures that no dangerous, spontaneous jaw movements can occur in the event of a pressure drop. - Integrated sensor system
for precise and process-reliable monitoring of the complete gripper stroke via IO-Link - Large jaw stroke
enables flexible handling of a wide range of parts - Dirt protected
due to IP 64 as standard and the metal-encapsulated, additionally sealed design at the base jaws - Robust interior multi-tooth guidance
for high moments and use of long gripper fingers - With food-compliant lubrication as standard
as a solution for an easy entry into medical technology, lab automation, pharmaceutical and food industry. The requirements of EN 1672-2:2020 are not fully met. - Fastening on two gripper sides in four screw directions
for universal and flexible gripper assembly - Air supply via hose-free direct connection or screw connections
for universal and flexible gripper assembly
You can find more information on our homepage.
Other Products from SCHUNK Inc.

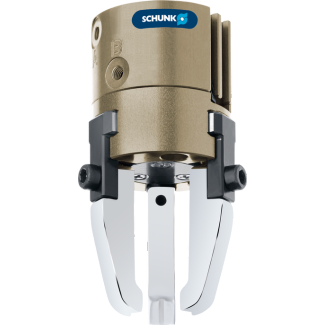

Pneumatic 3-Finger Centric Gripper - PZN-plus
