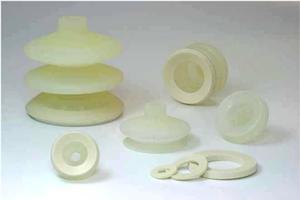

Schmalz is the leading supplier in vacuum automation supplying the entire range of vacuum components and robotic/gantry style vacuum gripping end effector tools. Vacuum Automation Components Innovative vacuum automation components from Schmalz offer reliable solutions for automation and handling tasks. The product range includes suction cups in (14) standard materials and specialty cup lines e.g. automotive cups or cups for the packaging industry. Schmalz also supplies vacuum generators, blowers, electric vacuum pumps, mounting elements, switches and system monitoring devices. Vacuum Gripping Systems Robotic & gantry style vacuum gripping systems from Schmalz provide significant productivity improvements. The range extends from pallet layer size grippers to complete vacuum spiders, delivered ready for connection, for use in all areas of automation. Located in Raleigh, NC, Schmalz Inc. has a National sales force and a network of Authorized Schmalz Distributors in all states
Product filed under:
End of Arm Tooling and Grippers End of Arm Tooling and Grippers
Vacuum spider SSP-FMC: large-area grippers connected modularly on aluminum sections for handling checker plates.
Vacuum suction spiders SSP are used not only in storage and distribution centers, but also with linking robots on press lines in sheet metal series production. They are also used for removing injection molded parts from molds in the plastics industry, for loading machining centers in the timber and furniture industries, as well as for handling modules during automated PV production. Vacuum suction spiders can also be configured using the modular system and consist of a sealing element, vacuum generation, valve module, sensor, profiles and holders. In the basic version, large-area gripper modules FMC are configured using aluminum beams so that they become a module that is optimized for handling tasks in terms of both its size and its performance. The large-area gripper modules are either affixed directly to the beam or attached using an adjustable element, so that they can be adjusted to a new product type without requiring tools whenever an order changes. The following additional modules are part of the vacuum spider modular system: separation or peeling units in order to securely separate porous and airtight products. Additionally, a valve unit that adjusts the gripper’s suction rate optimally based on the product to be handled is also available, as well as a sensor unit for optimizing cycle times.
