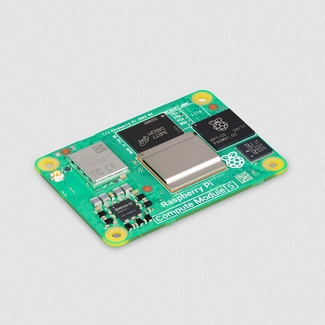

Compute Module 5

Specification

55 mm × 40 mm × 4.7 mm module

4 × M2.5 mounting holes

Broadcom BCM2712 quad-core 64-bit Arm Cortex-A76 (Armv8) SoC @ 2.4GHz

Memory options:

• 2GB, 4GB, 8GB, or 16GB LPDDR4-4267 SDRAM with ECC
• 0GB, 16GB, 32GB or 64GB eMMC flash memory

Options for certified radio module containing:

• 2.4 GHz, 5.0 GHz IEEE 802.11 b/g/n/ac wireless
• Bluetooth 5.0, BLE
• On board electronic switch to select between PCB trace or external antenna

Gigabit Ethernet PHY supporting IEEE 1588

1 × PCIe x1 root complex, Gen 2 (5Gbps)

1 × USB 2.0 port (high speed)

2 × USB 3.0 ports, supporting simultaneous 5Gbps operation

Up to 30 × GPIO supporting either 1.8V or 3.3V signalling and peripheral options:

• Up to 5 × UART
• Up to 5 × I2C
• Up to 5 × SPI
• 1 × SDIO interface
• 1 × DPI (parallel RGB display)
• 1 × I2S
• Up to 4 × PWM channels
• Up to 3 × GPCLK outputs

2 × HDMI 2.0 ports (supports up to 4Kp60 on both ports simultaneously)

2 × 4-lane MIPI ports supporting both DSI (display port) and CSI-2 (camera port)

4Kp60 HEVC decoder

OpenGL ES 3.1 graphics, Vulkan 1.2

1 × SDIO 2.0 (CM5 Lite)

Documents

• Raspberry Pi Compute Module 5 product brief
• Raspberry Pi Compute Module 5 datasheet
• Raspberry Pi Compute Module 5 design files

Compliance

Raspberry Pi Compute Module 5 has undergone extensive compliance testing and meets a number of regional and international standards.

View and download relevant certificates and conformity documents.
If you require any further information regarding compliance, please contact us at [email protected]

The Adopted Trademarks HDMI®, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Obsolescence

Raspberry Pi Compute Module 5 will remain in production until at least January 2036
